Acer Aspire TimelineX 1830T-68U118 Bluetooth Replacement

Geschrieben von: Brenna Waterbury
  • Kommentare: 0
Acer Aspire TimelineX 1830T-68U118 Bluetooth Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Sekunden

Einleitung

This guide will help you locate and replace the Bluetooth.

  1. VCVVRPNWGKhYdLPk

    • Turn your laptop over, and find the laptop battery release button locks for your Acer laptop.

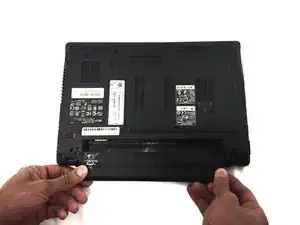

  2. ArXeo5L2CbfjMsJZ
    ArXeo5L2CbfjMsJZ
    Sd3dTqPe35QyvJDu
    TvgXGMhSFL6foxHD

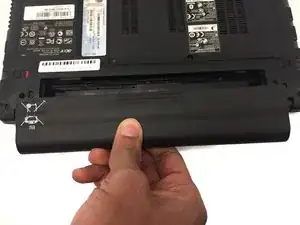

    • Hold the battery release button, and pull the battery out of the laptop.

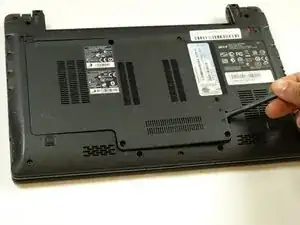

  3. CwsTrckogdqQRRkm
    CwsTrckogdqQRRkm
    QoBviEBXTohkl2Mk
    LCB31AdAsLCFEpaK

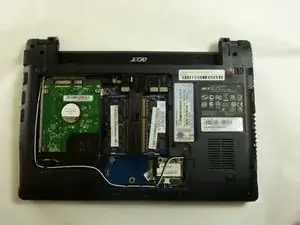

    • Remove battery before beginning.

    • Use a Phillips #0 screwdriver to remove the 5 screws from the bottom cover.

    • Pry open the cover using the Spudger tool.

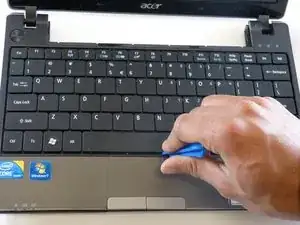

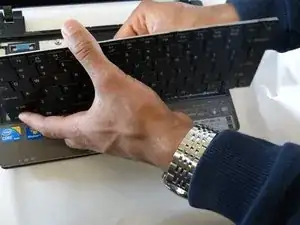

  4. mPHqRFj2gq4YB2fg
    mPHqRFj2gq4YB2fg
    BUjC5SxGChyXYX6M
    GvCHkRoMh166kueL

    • Remove the keyboard with a plastic opening tool or spudger.

    • There is a plastic film that needs to be gently peeled from the laptop base.

    • Use caution when removing the keyboard as it is fragile.

  5. IPWLqATqcBorcrfV
    IPWLqATqcBorcrfV
    TlW6mbRDWCTJHkGa

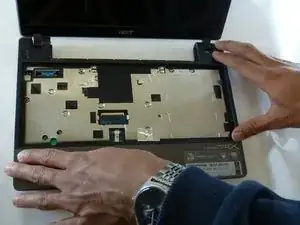

    • Use a Phillips #0 screwdriver to remove the 4 screws from the motherboard shield.

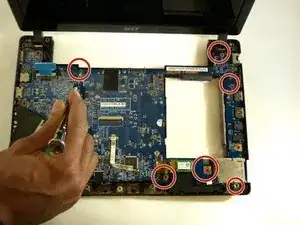

  6. P1vWHrduyIp1NOUm
    P1vWHrduyIp1NOUm
    JyorTGSaYSXlMVLu

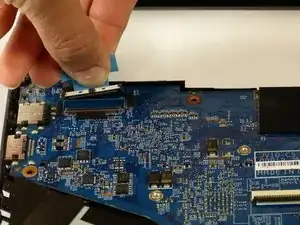

    • Remove the motherboard from the base of the laptop by unscrew the screw drivers using PH0 mm Phillips Head.

    • Carefully remove the charger attachment in the top left.

  7. Lu2gDcbTLWYavW6g
    Lu2gDcbTLWYavW6g
    vPSdQrbu2Bf5hWFI
    h4GTqVYdW4nM1Hbx

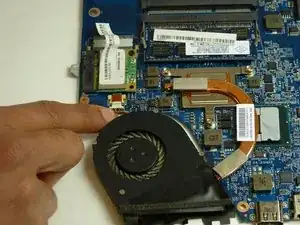

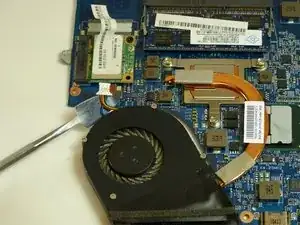

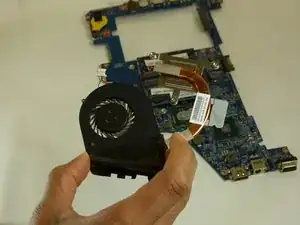

    • Carefully remove the fan from the motherboard by detaching the plastic insert as seen in the pictures

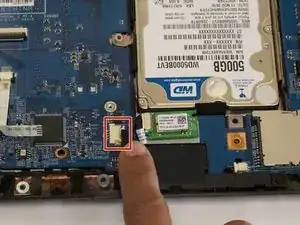

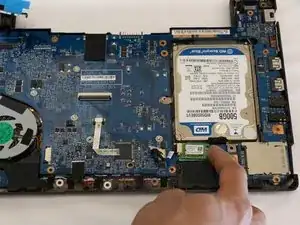

  8. BLRnMPRp6kheIJoA
    BLRnMPRp6kheIJoA
    AaDKqwsLNHE4PHX3
    KJHmPKvaQK6Ajoe5

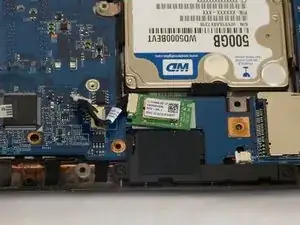

    • Detach the covered wires that connect the motherboard to the Bluetooth.

    • Remove the Bluetooth module by hand to then replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
