Acer Aspire TimelineX 1830T-68U118 RAM Replacement

Geschrieben von: Brenna Waterbury
  • Kommentare: 1
Acer Aspire TimelineX 1830T-68U118 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

In this guide, you will be able to replace your laptop's RAM with step by step help. The RAM is located on the motherboard.

  1. gmwRxSJAuBE15xvg
    gmwRxSJAuBE15xvg
    JxnjdwegYEqMr3jK
    xxAZxcIVLJlUXwQG

    • Remove the device's battery before beginning.

    • Turn laptop so under side is facing up.

    • Locate the hard drive door and unscrew the 5 screws using PH0 mm Phillips Head.

  2. E2xSYwZ44BU6c5xg

    • Pry open hard drive cover using the Spudger tool.

  3. vM5V1BekPAeIyADe
    vM5V1BekPAeIyADe
    QZJEWLjExEQSSyvh
    fB5J4YdIIZUNFNaI

    • Remove screw attached to the hard drive using the PH0 mm Phillips Head.

    • The hard drive can now be removed from the device.

  4. CwsTrckogdqQRRkm
    CwsTrckogdqQRRkm
    QoBviEBXTohkl2Mk
    LCB31AdAsLCFEpaK

    • Remove battery before beginning.

    • Use a Phillips #0 screwdriver to remove the 5 screws from the bottom cover.

    • Pry open the cover using the Spudger tool.

  5. mPHqRFj2gq4YB2fg
    mPHqRFj2gq4YB2fg
    BUjC5SxGChyXYX6M
    GvCHkRoMh166kueL

    • Remove the keyboard with a plastic opening tool or spudger.

    • There is a plastic film that needs to be gently peeled from the laptop base.

    • Use caution when removing the keyboard as it is fragile.

  6. IPWLqATqcBorcrfV
    IPWLqATqcBorcrfV
    TlW6mbRDWCTJHkGa

    • Use a Phillips #0 screwdriver to remove the 4 screws from the motherboard shield.

  7. P1vWHrduyIp1NOUm
    P1vWHrduyIp1NOUm
    JyorTGSaYSXlMVLu

    • Remove the motherboard from the base of the laptop by unscrew the screw drivers using PH0 mm Phillips Head.

    • Carefully remove the charger attachment in the top left.

  8. Lu2gDcbTLWYavW6g
    Lu2gDcbTLWYavW6g
    vPSdQrbu2Bf5hWFI
    h4GTqVYdW4nM1Hbx

    • Carefully remove the fan from the motherboard by detaching the plastic insert as seen in the pictures

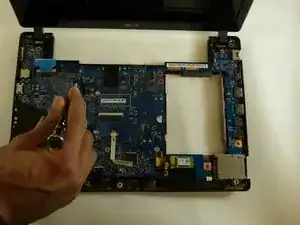

  9. NlYxANPMGWB6iXdX

    • After removing the motherboard, turn it over so that the back side is facing you.

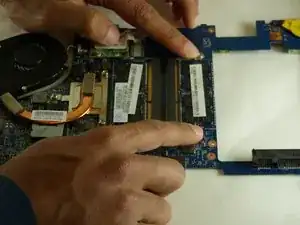

  10. FARdjbTwGGxxoUGp

    • To release the RAM from the motherboard, press both of the metal prongs on the sides of the RAM.

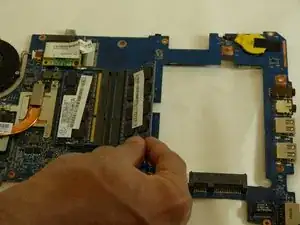

  11. n6gjkykD22RPHjQs

    • After RAM memory card is released from the motherboard, hold the RAM card on a 45 degree angle and remove the card.

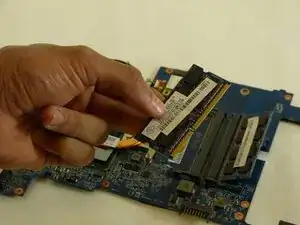

  12. DBrDPSc5Dd2nbLSh

    • Install your new RAM memory card following these steps in reverse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
