Einleitung

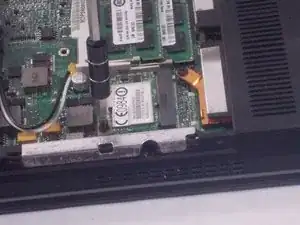

If your WiFi module is malfunctioning use this guide to remove and replace the device, to do this you will need a replacement WiFi module, tweezers and a PH 1 Philips head screwdriver. This is a simple process and should not require any in depth knowledge of computers to perform.
Werkzeuge
Ersatzteile
-
-
Power down the laptop.
-
Turn the laptop over so the bottom is facing up and the battery is facing towards you.
-
-
-
The tab on the right is a locking tab. Slide this tab to the right to unlock it (the red should now be showing).
-
Slide the left tab to the left and hold it there.
-
-
-

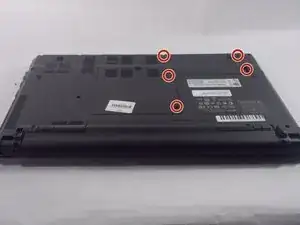

Flip the laptop over and remove screws (PH#1, 8mm length) holding the back cover in place
-

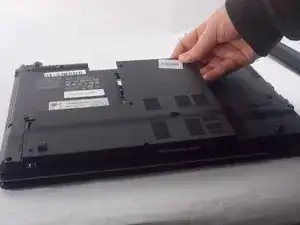

Remove back cover from your laptop
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
