Einleitung
If you need to replace your hard drive due to technical problems or any other reason, use this guide to gain access to it. In order to conduct this repair, you will need a Phillips head screw driver with a PH 1 head. This is a relatively simple process and should pose a significant challenge or risk harm to your device as long as it is powered off.
Werkzeuge
Ersatzteile
-
-
Power down the laptop.
-

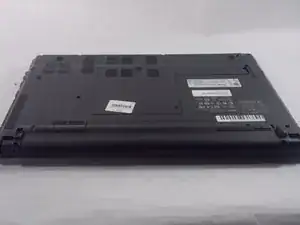

Turn the laptop over so the bottom is facing up and the battery is facing towards you.
-
-
-

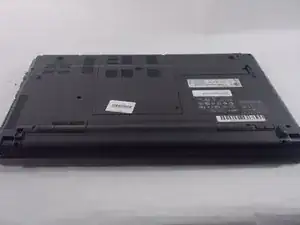

The tab on the right is a locking tab. Slide this tab to the right to unlock it (the red should now be showing).
-

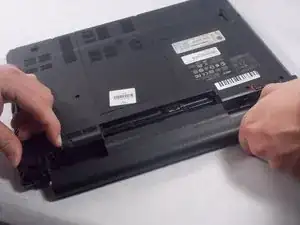

Slide the left tab to the left and hold it there.
-
-
-

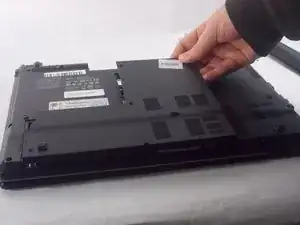

Place laptop bottom side up, and use a Phillips #1 screwdriver to unscrew the five 8 mm screws from the back panel.
-
-
-

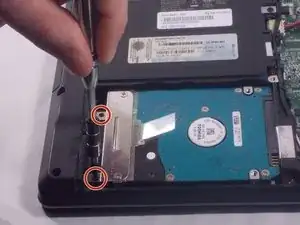

After removing the back panel, use a Phillips #1 screwdriver to unscrew the two 8 mm screws that hold the retaining piece to the frame.
-
-
-

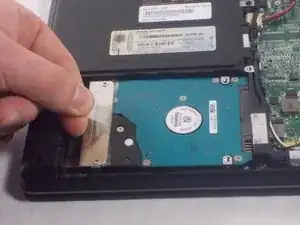

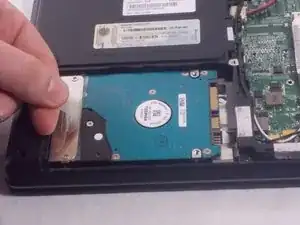

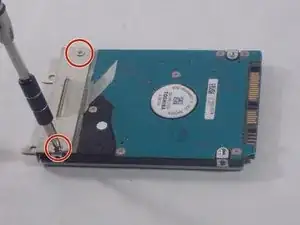

Remove the hard drive from the laptop, and use a Phillips #1 screwdriver to unscrew the two 3 mm screws that secure the retaining piece to the hard drive.
-
To reassemble your device, follow these instructions in reverse order.
