Acer Aspire TimelineX 4830T-6682 CPU Replacement

Geschrieben von: Jon Brunsell
  • Kommentare: 5
Acer Aspire TimelineX 4830T-6682 CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

8 Minuten

Einleitung

The CPU is not a common failure component, but may fail due to a failed cooling fan that caused it to overheat.

This guide provides simple steps to replace the CPU on the Acer Aspire TimelineX 4830T-6682 using minimal tools that can be acquired locally, or through iFixit. Please make sure and follow the prerequisite procedures.

  1. eixbsEc2JE6JV463
    eixbsEc2JE6JV463
    FWWdCLtWLxJOdAeq
    FjPhDifbfTug3mQo

    • Remove the single screw with a Phillips #0 screwdriver.

    • Use a plastic opening tool on the upper part of the panel to remove it and access the RAM.

    • The other way to remove the panel is by sliding it away from the laptop. The difficulty of sliding it depends on the condition of your laptop.

  2. nufNqSlFmNWipmbM
    nufNqSlFmNWipmbM
    sRo5UK541mQRcPNC
    Z4gelXYj41jHVVgj

    • After the panel has been removed, locate the RAM. It should be on the lower right.

    • There are pins around the RAM that need to be pulled back. After the pins are removed, pull the RAM chip towards you to remove it.

  3. Z4ekqGWtwUY1R3bw

    • Remove the eleven screws that hold that back panel to the laptop using a J0 Phillips screwdriver bit.

  4. bSeCc5priALogyl2
    bSeCc5priALogyl2
    QSQDefSn6uvQpeRq
    uUAEC3d2eMeUIlaT

    • Place the laptop in the upright position, the lower front touchpad panel should be easily detatched at this point.

    • Remove the lower front touchpad panel by using an angled tweezers to disconnect the only wired tape connected to the motherboard.

  5. ehUWpnSLXfJTwUOS

    • Next, disconnect the 4 wired tapes of the keyboard from the motherboard just like we did with the lower front touchpad panel.

    At this step 3 additianal screws have to be removed on the lower left, middle and right side (which are also visible on the image but not marked) before the keyboard cover can be removed!

    Robert -

  6. SPIJcGAKjPPQpybD
    SPIJcGAKjPPQpybD
    I6kCToqk5HQqqOLG

    • Finally, using an opening tool, gently pry along the edge of the keyboard to separate it from the laptop.

  7. YLrHQvBpm33abQhe

    • The battery will be on the side closest to the screen.

    • Gently lift it out. It will still be attached by white, red, and black wires.

  8. PCGkQiqZQg3sU1qe
    PCGkQiqZQg3sU1qe
    2ywHUqWC4bSBK6aF

    • Pull the white plug, it should easily detach.

    • Remove the battery from the device.

  9. XThAZEiJJTbs4hDO

    • Turn the CPU screw counterclockwise 180 degrees with a Flathead 2.5mm screwdriver

    I want to know what type is the cmos battery on this laptop. It is not the usual CR2032 coz it is smaller but icant find any information at all in the net.

    James Chua -

  10. rFa3eG3eunjAQPCi

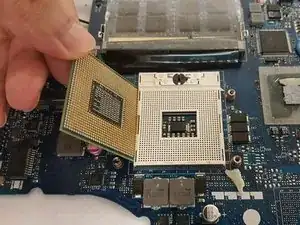

    • Remove the CPU vertically from the socket being careful not to bend the CPU pins

Abschluss

To reassemble your device, follow these instructions in reverse order.
