Acer Aspire TimelineX 4830T-6682 Fan Replacement

Geschrieben von: Jon Brunsell
  • Kommentare: 3
Acer Aspire TimelineX 4830T-6682 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

A working cooling fan in laptops is a critical component because the processor, and graphic IC’s would overheat without it. Fans are a wearout part that will eventually need replacing.

This guide provides simple steps to replace the Fan on the Acer Aspire TimelineX 4830T-6682 using minimal tools that can be acquired locally, or through iFixit. Please make sure and follow the prerequisite procedures.

  1. eixbsEc2JE6JV463
    eixbsEc2JE6JV463
    FWWdCLtWLxJOdAeq
    FjPhDifbfTug3mQo

    • Remove the single screw with a Phillips #0 screwdriver.

    • Use a plastic opening tool on the upper part of the panel to remove it and access the RAM.

    • The other way to remove the panel is by sliding it away from the laptop. The difficulty of sliding it depends on the condition of your laptop.

  2. nufNqSlFmNWipmbM
    nufNqSlFmNWipmbM
    sRo5UK541mQRcPNC
    Z4gelXYj41jHVVgj

    • After the panel has been removed, locate the RAM. It should be on the lower right.

    • There are pins around the RAM that need to be pulled back. After the pins are removed, pull the RAM chip towards you to remove it.

  3. Z4ekqGWtwUY1R3bw

    • Remove the eleven screws that hold that back panel to the laptop using a J0 Phillips screwdriver bit.

  4. bSeCc5priALogyl2
    bSeCc5priALogyl2
    QSQDefSn6uvQpeRq
    uUAEC3d2eMeUIlaT

    • Place the laptop in the upright position, the lower front touchpad panel should be easily detatched at this point.

    • Remove the lower front touchpad panel by using an angled tweezers to disconnect the only wired tape connected to the motherboard.

  5. ehUWpnSLXfJTwUOS

    • Next, disconnect the 4 wired tapes of the keyboard from the motherboard just like we did with the lower front touchpad panel.

    At this step 3 additianal screws have to be removed on the lower left, middle and right side (which are also visible on the image but not marked) before the keyboard cover can be removed!

    Robert -

  6. SPIJcGAKjPPQpybD
    SPIJcGAKjPPQpybD
    I6kCToqk5HQqqOLG

    • Finally, using an opening tool, gently pry along the edge of the keyboard to separate it from the laptop.

  7. YLrHQvBpm33abQhe

    • The battery will be on the side closest to the screen.

    • Gently lift it out. It will still be attached by white, red, and black wires.

  8. PCGkQiqZQg3sU1qe
    PCGkQiqZQg3sU1qe
    2ywHUqWC4bSBK6aF

    • Pull the white plug, it should easily detach.

    • Remove the battery from the device.

  9. xGXnH4oiFcXcRH5X

    • Remove the 3.4mm by 1.9mm screws with a Phillips #0 screwdriver from the fan's heatsink.

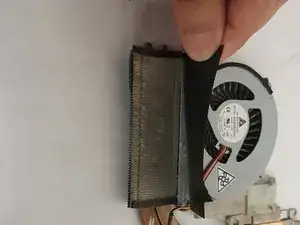

  10. psVd1l1HHPHteaWG

    • Remove the plastic fan dust protector

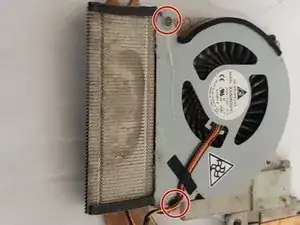

  11. T13vsqbQie2D4MaZ

    • Remove the two 3.4mm by 1.9mm screws that are now exposed

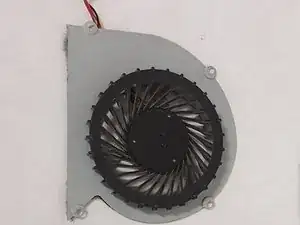

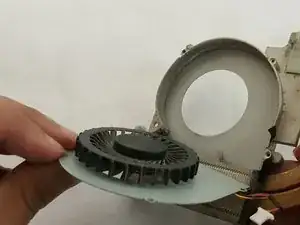

  12. M1ueHPsM1SF5QE5G
    M1ueHPsM1SF5QE5G
    64ICBrhHFJgDb2nK

    • Separate the fan from the heat sink

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jon Brunsell

Mitglied seit: 10/07/19

592 Reputation

2 Kommentare

Where do i get the replacement fan? Are they generic. What size do I ask for?

Daisy K -

The fans are not generic even though the same fan might be used for several laptop models the frame of the fan might be different. A replacement fan can be purchased online by searching for the laptop model and fan. Here is an example of an Amazon search I did for the Acer Aspire 4830T fan:

https://www.amazon.com/wangpeng-Cooling-...

Best Regards

Jon Brunsell -
