Acer Aspire V3-551-8469 RAM Replacement

Geschrieben von: Maritsa Garcia
  • Kommentare: 0
Acer Aspire V3-551-8469 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

The Random Access Memory (RAM) stores information that needs to be retrieved quickly or often. The RAM is one common component in a laptop that fails often and needs to be replaced. Use this guide to replace broken the RAM on your Acer Aspire V3-551-8469 laptop. No complicated manipulation is required.

  1. UZEEfHNNBi6D3bGh
    UZEEfHNNBi6D3bGh
    gKYlfPUxlYJQoEaR

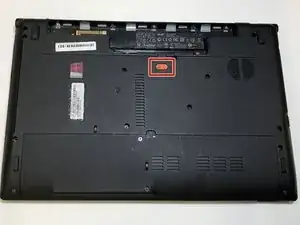

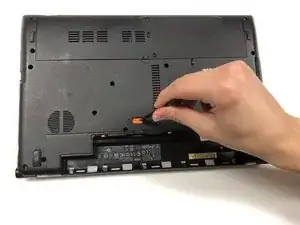

    • To release the battery, slide the orange tab to the right with a spudger.

    • The battery is now released and can be picked up and set to the side.

  2. AKKpPocOXbNVFE2S
    AKKpPocOXbNVFE2S
    JWiHCd32pMsDXOEL

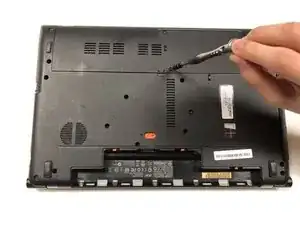

    • Remove the two 5.3 mm Phillips #0 screws.

  3. XRYbVMHaQlK2nImd
    XRYbVMHaQlK2nImd
    nLUU2ZxM3UwSUjkw

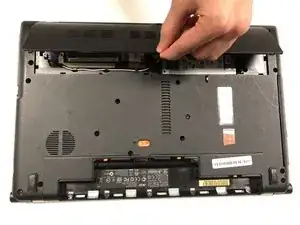

    • Pull off the back panel.

  4. wgqigaGkXdBQuKTf
    wgqigaGkXdBQuKTf
    FlKuLuxXdpoKd3Zl

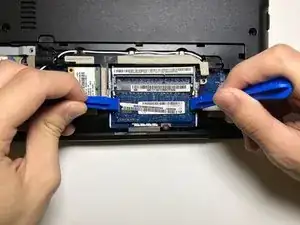

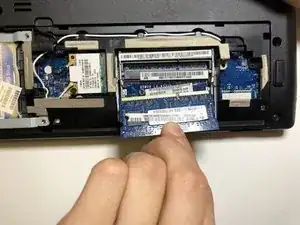

    • Use two plastic opening tools to pry the two clips outward to release the RAM chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
