Acer Aspire V3-551-8469 USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your laptop isn't downloading data into a plugged in USB device, the USB port will need to be replaced. Use this guide to replace broken USB ports in your Acer Aspire V3-551-8469 laptop. No complicated manipulation is required.

  1. BZuSjINl5wLPwkSb
    BZuSjINl5wLPwkSb
    lPqJefW4jBKXm4KC

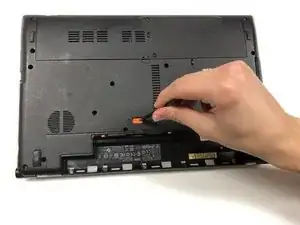

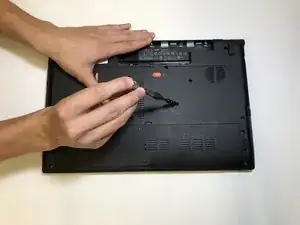

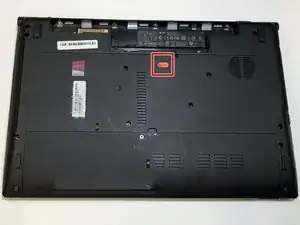

    • To release the battery, slide the orange tab to the right with a spudger.

    • The battery is now released and can be picked up and set to the side.

  2. PFQ1JCJ5TSeh25Tw
    PFQ1JCJ5TSeh25Tw
    WhpVpLnWGUNPZvFs

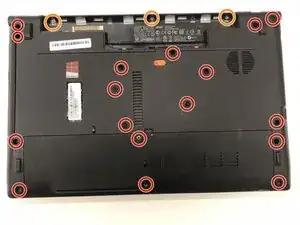

    • Remove the sixteen 5.3 mm Phillips #0 screws.

    • Remove the three 3 mm Phillips #00 screws.

  3. JCDrQCBsAcwjLGlS
    JCDrQCBsAcwjLGlS
    PdsVQEjJsKkp5vIR

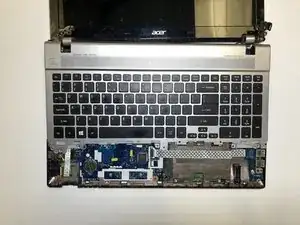

    • Flip the computer over and remove the touchpad cover.

  4. RsqerXcGhj64IKHS

    • Remove the ribbon cable connecting the USB ports to the computer.

  5. av2SUAyQtURcZo6i

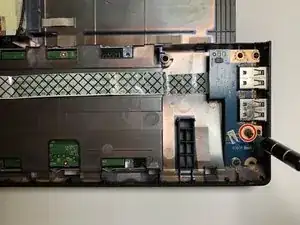

    • Using a Phillips #0 screwdriver, remove the one screw.

  6. CxZbllRrjQHcIOdo

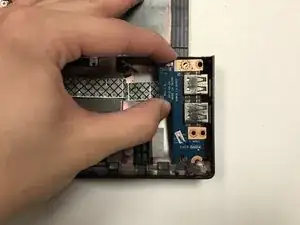

    • Slide the USB port out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
