Acer Aspire V3-551-8887 RAM Replacement

Geschrieben von: Lance
  • Kommentare: 0
Acer Aspire V3-551-8887 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Need more RAM? Follow this guide to speed up your laptop.

  1. AiP5sclRTA2jENWf

    • Locate and remove the two 5.3 mm Phillips #1 screws holding the back panel in place.

  2. nZyNgZMXktJkY4hs
    nZyNgZMXktJkY4hs
    lkScJqDJh34lskj4

    • Use a spudger to pry the panel up from the laptop case and remove it.

    • The laptop should now be open with the RAM and wifi chip now accessible.

  3. whvDXBkb3KFvYgXV

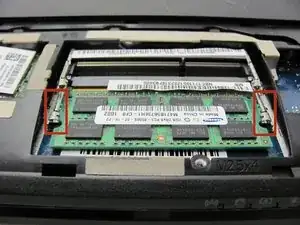

    • Locate the two RAM clips.

  4. MNghNGTAgSOK3xfa

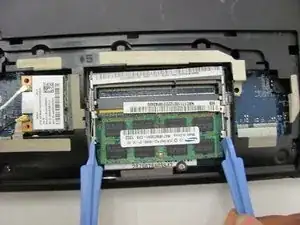

    • Use two spudgers to pry the two clips outward to release the RAM chip.

  5. WGBMmP5F2XeyDF1I

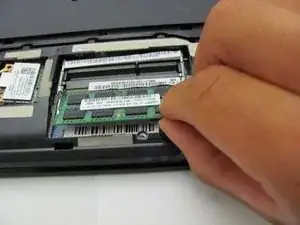

    • Gently pull out the RAM chip.

    • If your laptop is using more than one stick of RAM, remove the second by repeating the past three steps.

Abschluss

To reassemble your device, follow these instructions in reverse order.
