USB is essential on modern laptops. Use this guide to fix your broken ports.

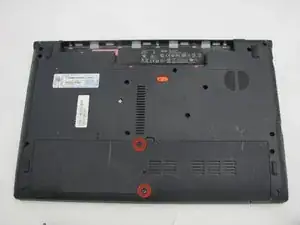

  1. AiP5sclRTA2jENWf
    • Locate and remove the two 5.3 mm Phillips #1 screws holding the back panel in place.

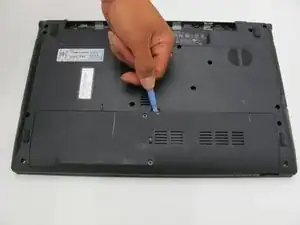

  2. nZyNgZMXktJkY4hs
    nZyNgZMXktJkY4hs
    lkScJqDJh34lskj4
    • Use a spudger to pry the panel up from the laptop case and remove it.

    • The laptop should now be open with the RAM and wifi chip now accessible.

  3. PneClQmZyYfJFjnj

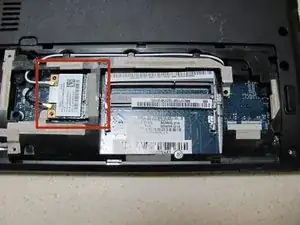

    • Locate the wifi chip.

  4. H2XOFwIRIXBt2TNY
    H2XOFwIRIXBt2TNY
    tJwZFM4WQgpKvGso

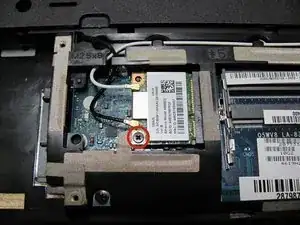

    • Remove the 5 mm Phillips #1 screw holding the wifi chip in place.

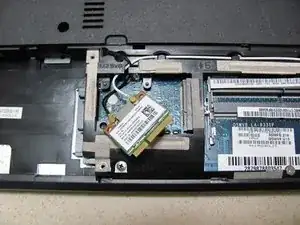

    • Carefully remove the wifi chip.

  5. VIRYDs31GOpYImic

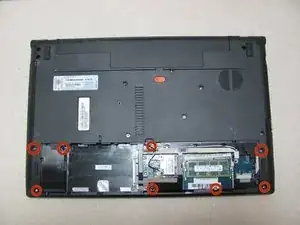

    • Remove the 8, 9 mm Phillips #1 screws holding the panel in place.

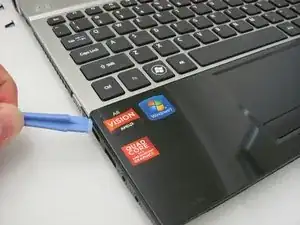

  6. NnuW1yJkQfgjA4De
    NnuW1yJkQfgjA4De

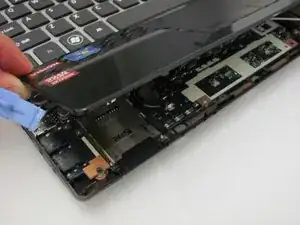

    XEc6sScMGkshQA2H
    • Flip the computer over, and with a spudger, remove the black panel directly below the keyboard.

    • Remove the panel and flip it up onto the keyboard

  7. ARpQRCc5eDeLmYEq
    ARpQRCc5eDeLmYEq
    bqTpAKkMAEeWZZNY

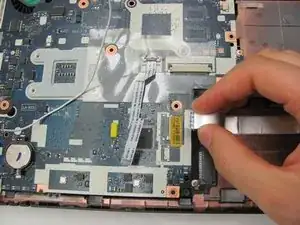

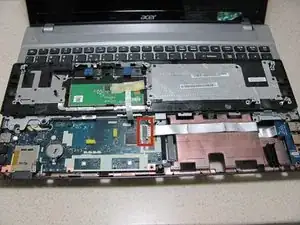

    • With the panel removed, locate the USB port ribbon cable connecting to the motherboard.

    • Carefully disconnect the ribbon cable.

  8. ET46HK1DkCaE1opY

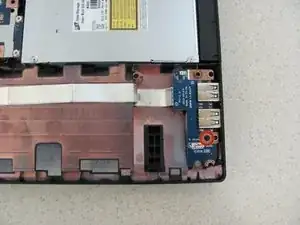

    • Unscrew the 5 mm Phillips #1 screw holding the USB ports in place.

  9. oSTiZvrrChiqS4ch

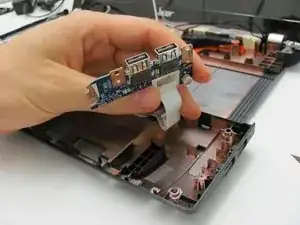

    • The USB ports can now be removed from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
