Acer Aspire V3-571G Wifi Card Replacement

Geschrieben von: Erica Gomes
  • Kommentare: 0
Acer Aspire V3-571G Wifi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. cXImIGJYMREfNYai
    cXImIGJYMREfNYai
    IwrbeAHeEm55dEMr
    JAU6HE2pwjYJeK6f

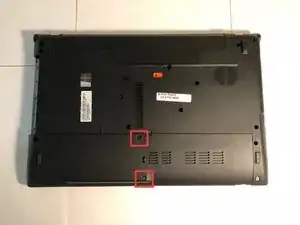

    • Flipping your laptop over, the wifi card is located on the lower half of the laptop

    • Remove the two screws shown on diagram using a Phillips head screwdriver

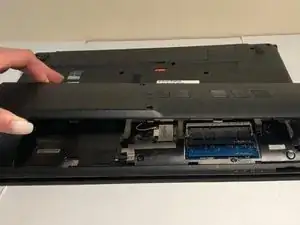

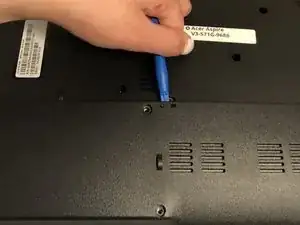

    • Use the opening tool to help lift and remove the lower case

  2. cYQW63dNJJ4XvZsD
    cYQW63dNJJ4XvZsD
    WJrMVwQRaiPnrXBV

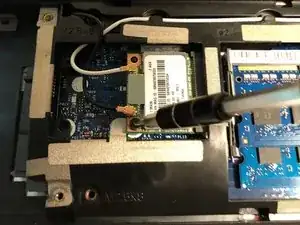

    • Remove the screw that is securing the wifi card in place

  3. MvtmB5sHRhuKUMP6

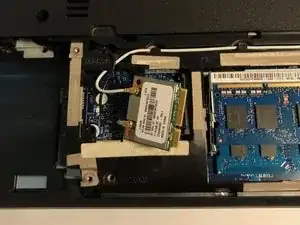

    • Use your fingers to gently pull out the wifi chip

  4. XXxKUqKN3VxqSsZJ

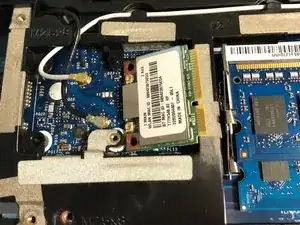

    • Disconnect the black and white wire from the wifi chip

Abschluss

To reassemble your device, follow these instructions in reverse order.
