Einleitung
If the hard drive of your Acer Aspire V3-771G laptop is full, you’re looking to upgrade, or your previous one is broken, this guide will help you to replace the old hard drive with a new one.

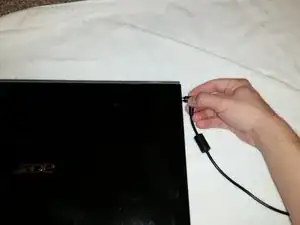

Warning: Static electric shocks may damage a good hard drive or other components in the laptop. Ground yourself to the laptop by touching any metal interior part, besides electrical connections, or wear an anti-static device (preferred) before removing or adding computer parts.
Werkzeuge
Ersatzteile
-
-

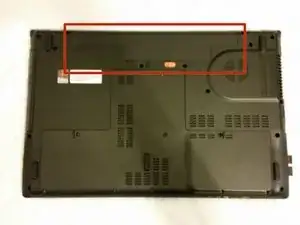

Flip the laptop over, and find the battery compartment.
-

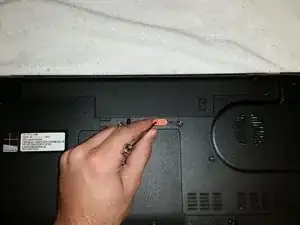

Use your fingers to move the orange slider located just below the battery compartment to the right.
-

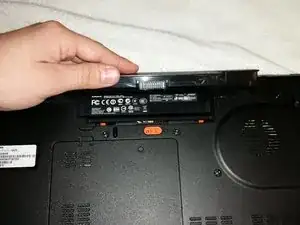

Lift the battery up and remove from the compartment.
-
-
-

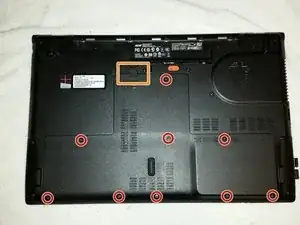

Using the screwdriver, remove the nine 8 mm screws from the panel on the back of the laptop.
-

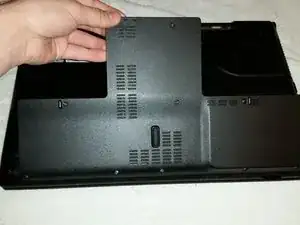

Gently lift the panel up from the open slot, use the opening tools as necessary, to free the panel from the laptop.
-
-
-

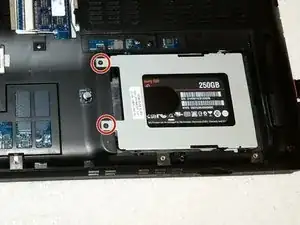

Remove the two screws holding the hard drive sled in place.
-

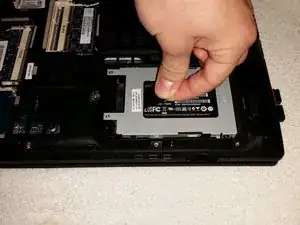

While grounding yourself, gently pull the black tag straight back, not up, to free the hard drive.
-
-
-

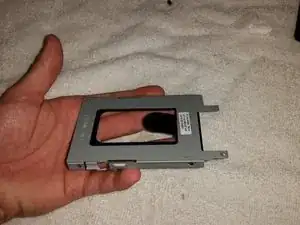

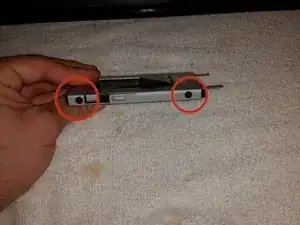

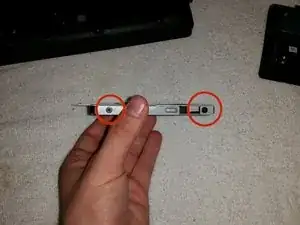

Using the screwdriver, remove the four 4 mm screws from the hard drive sled.
-
Carefully remove the hard drive. A new one may now be installed.
-
To reassemble your device, follow these instructions in reverse order.
