Acer Aspire V5-122P-0468 Display Replacement

Remove the nine 4mm screws with a PH0 screwdriver.

Remove the two 6mm screws with a PH0 screwdriver.

Remove the black rubber tab on the back of the computer

Remove the 4mm screw hidden underneath the black tab with a PH0 screwdriver.

Orient the computer upside down, with the hinges facing away from you.

Find the black plastic piece in the SD card slot on the right side of the computer.

Remove the plastic piece by sliding it out of the SD card slot.

Insert a spudger at these eight locations to disengage the plastic tabs from the housing cover, and pry apart.

Continue around the entire perimeter of the cover with the spudger.

Remove the two 4mm screws using a PH0 screwdriver.

Depress the tabs holding the battery with a spudger.

Disconnect the battery connector from the motherboard using a spudger.

Pull the battery up and away from the laptop to remove.

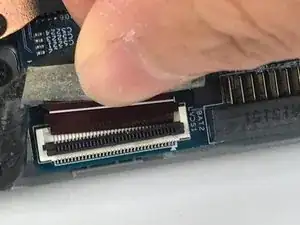

Flip up the black locking tab on the ZIF connector, and pull out the ribbon cable.

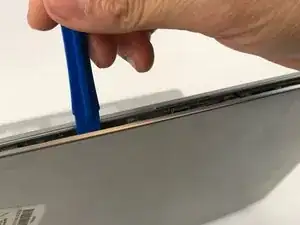

Wedge a spudger in between the plastic bezel frame and back cover to create a gap.

Then insert a plastic opening tool to pry apart the bezel from the back cover.

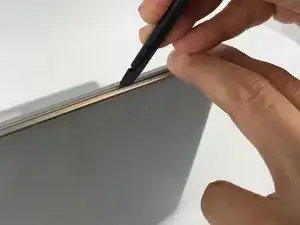

Work your way around the perimeter of the cover with the plastic opening tool.

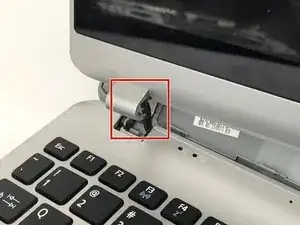

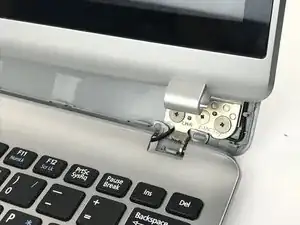

Open up the laptop to unsnap the hinges from the back of the computer.

Slide the pin connector and cable through the hinge that connects the display to the rest of the laptop.

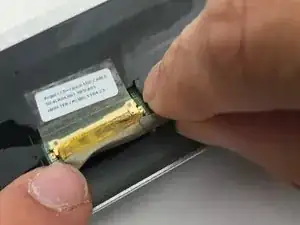

Remove the transparent tape covering the pin connector.

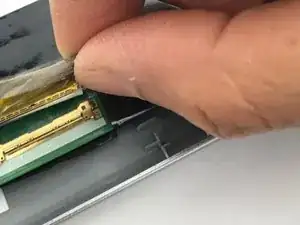

Unplug the pin connector from the display.

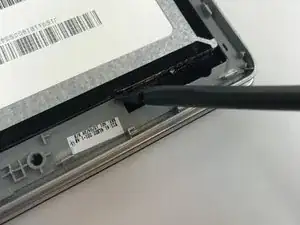

Cut the tape between the display and the plastic frame using the flat end of a spudger.

Work the spudger around the perimeter of the display to separate it from the bezel.
