Before doing this replacement make sure that you have a correct 2.5" hard drive to use. The original drive is a 500 GB hard drive, but any size could be used as a replacement.
-
-
Remove the nine 4mm screws with a PH0 screwdriver.
-
Remove the two 6mm screws with a PH0 screwdriver.
-
-
-
Remove the black rubber tab on the back of the computer
-
Remove the 4mm screw hidden underneath the black tab with a PH0 screwdriver.
-
-
-
Orient the computer upside down, with the hinges facing away from you.
-
Find the black plastic piece in the SD card slot on the right side of the computer.
-
Remove the plastic piece by sliding it out of the SD card slot.
-
-
-
Insert a spudger at these eight locations to disengage the plastic tabs from the housing cover, and pry apart.
-
Continue around the entire perimeter of the cover with the spudger.
-
-
-
Remove the two 4mm screws using a PH0 screwdriver.
-
Depress the tabs holding the battery with a spudger.
-
Disconnect the battery connector from the motherboard using a spudger.
-
Pull the battery up and away from the laptop to remove.
-
-
-

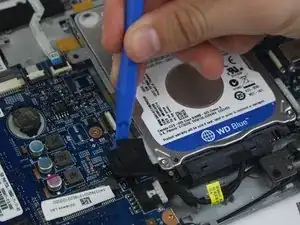

Use a plastic opening tool to pop the latch up on the ZIF connector up.
-

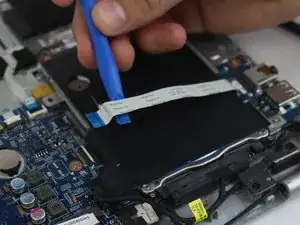

Pull out the ribbon cable to disconnect it from one side.
-
Remove the black isolation pad.
-
-
-

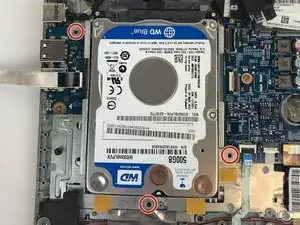

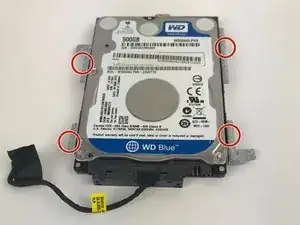

Remove the four 3mm Phillips #0 screws located on the side of the rails.
-

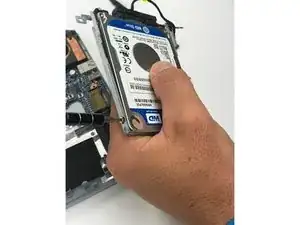

Separate the hard drive from the mounting rail.
-
To reassemble your device, follow these instructions in reverse order.
