Acer Aspire V5-131-2629 Wireless Adapter Replacement

Geschrieben von: Aaron Almeida
  • Kommentare: 0
Acer Aspire V5-131-2629 Wireless Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

The following guide summarizes information to replace the wireless adapter in the Acer Aspire V5-131-2629.

If your Acer Aspire does not show an available network or has a frequent failure to connect Wi-Fi, there is a chance that the wireless adapter is in need of replacement.

Be sure to test your wireless adapter and your connection before deciding to go through with the replacement process shown in this guide.

  1. YOedXlNTqPM6eEuT

    • Carefully turn your Acer Aspire V5-131-2629 upside down, so that the battery cell is visible and nearest to you.

  2. BbNQK6VAmKRT31Vq

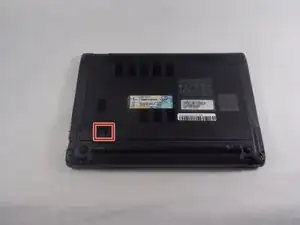

    • Identify the small, oval slide switch on the left hand side of the laptop, directly above the battery.

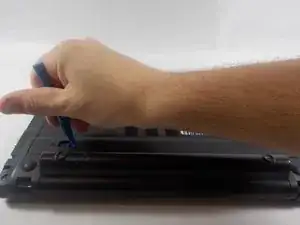

  3. 3YHmS6hF4rxkhWpm

    • Insert an opening tool into the hole on the right side of the oval switch. Use the opening tool to slide the switch to the right.

  4. gfVw3numCCEvrNeh
    gfVw3numCCEvrNeh
    XUTVWjAfE3Dk2GxQ

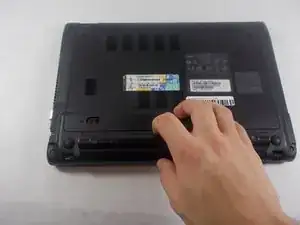

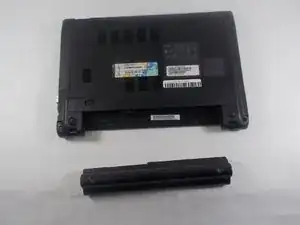

    • With the switch engaged to the right, firmly pull the battery out and towards yourself, parallel to your work surface.

  5. smSViHE46jiFP1Fs

    • Remove the single Phillips #0 screw from the cover on the underside of the laptop.

  6. kqUoqJIcVwsCTL5h
    kqUoqJIcVwsCTL5h
    TFhQAAE5g2x1KTuR

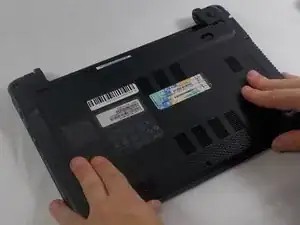

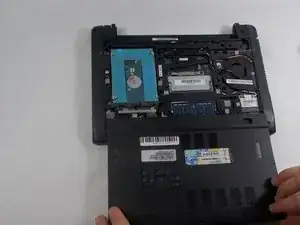

    • Remove the cover by sliding it outwards and remove it from the device.

  7. FtpWGORbgtjgO2Cp

    • Remove the black and white cables that are attached to the Wi-Fi card.

  8. O1BWUZANmg2tcdNP
    O1BWUZANmg2tcdNP
    TqH5W6vJlAWmGNxa

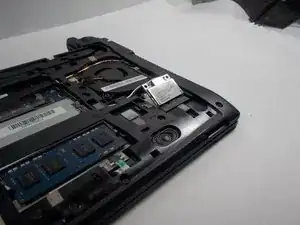

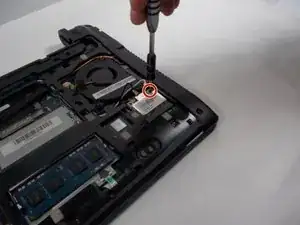

    • Remove the single Phillips screw securing the Wi-Fi card.

    • The wireless adapter will pop out at a 45 degree angle.

  9. hajM2qqomTNkBWMm

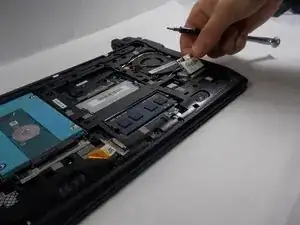

    • Pull on the wireless adapter to remove it and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
