If you need to replace the touchpad on your Acer Aspire V5, then this guide will help you. If you believe you need to replace the touchpad because it's not working, then you should consider other solutions first.
Some potential problems may include the touchpad being disabled or the touchpad driver being outdated or missing. To ensure that you are not experiencing any of these problems, check out our troubleshooting guide for an unresponsive touchpad.
If you want to replace your touchpad because it's damaged, then continue with the replacement guide! You will need an opening tool, a precision bit driver, and a magnetic pickup bit.
Before beginning, make sure to close, power off your laptop completely, and disconnect from any external power source.
-
-
To open the bottom compartment, put one finger underneath the laptop and firmly grab the compartment with your thumb.
-
Carefully slide the bottom compartment with your thumb until you feel it pop out of place.
-
-
-
Unscrew the twenty M2 x 6 Phillips screws screwdriver and the PH001 bit. Once you've done that unplug the battery and disconnect all the components connected to the motherboard.
-
Once every component is disconnected and removed, pry open the bottom of the laptop using the pry tool.
-
-
-
Once it's all opened disconnect the two components that are attached to the motherboard and keyboard by detaching them.
-

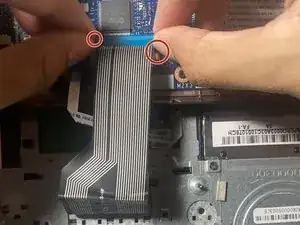

To detach the big wire connected, pull the sides of where it's connected to the motherboard down and gently pull the connection out.
-
-
-

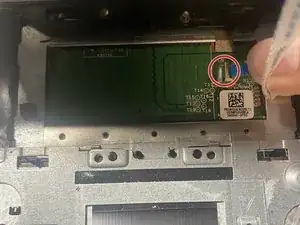

For the small wire, just pull off the tape that's holding it on the touchpad of the keyboard and gently pull the wire out.
-
-
-
Once both of the wires are disconnected, the side with the keyboard will detach from the rest of the computer.
-

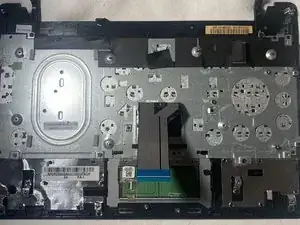

Now we can move the keyboard side without the rest of the laptop.
-
-
-

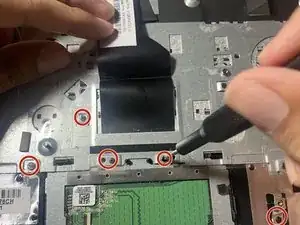

Remove all the M2 x 3 Phillips screws that are holding the keyboard in place. Some will be located under the tape. Pull up the tape and unscrew them.
-
-
-

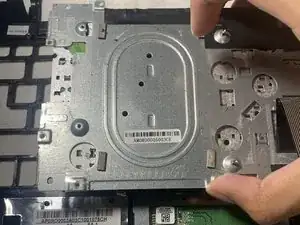

With the keyboard out of the way, we will be able to take off the touchpad.
-

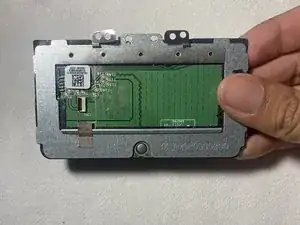

Push the touchpad up and it will pop out of the frame.
-
To reassemble your device, follow these instructions in reverse order.
