Acer Aspire V5-552PG-X469 RAM Replacement

Geschrieben von: Noah lishman
  • Kommentare: 0
Acer Aspire V5-552PG-X469 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

In this guide the back cover, and RAM card will be removed so that a new RAM card can be inserted.

  1. aeQdAYoGJksbYc4V

    • Remove the storage tray on the left edge of the device.

  2. QrbRYmrN1uilXGhY

    • Use a Phillips #0 screwdriver to remove seventeen 7mm screws from the lower case.

  3. jYPTgLCOWfb6gJH6

    • Lift up the back case to remove it.

  4. SKDRyIjDMCRSMRBG
    SKDRyIjDMCRSMRBG
    5hgha4MrsRQOIlDH

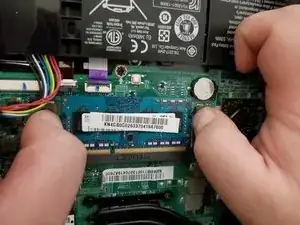

    • Locate the RAM slot and push outwards on the metal tabs to release the RAM card.

  5. wTckkbW2vfBIYraG

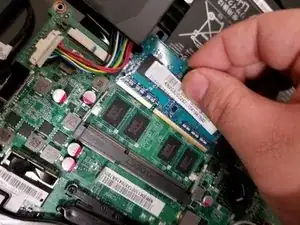

    • Carefully slide the RAM card out of its slot, and insert the replacement card

Abschluss

To reassemble your device, follow these instructions in reverse order.
