Acer Aspire V5-571P-6815 Touchscreen Replacement

Turn off the computer and unplug all power.

Slide the locking latch to the right and hold while pulling the battery out with your other hand.

Insert a plastic opening tool between the screen and lid.

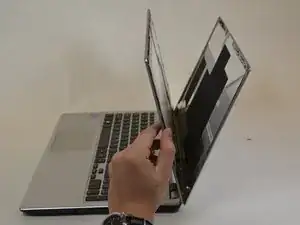

Work the plastic opening tool around the perimeter while prying upwards until the screen separates from the lid.

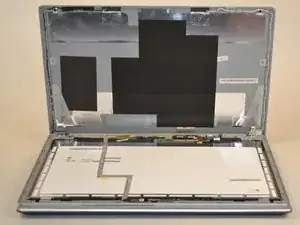

Lay the screen flat down on the keyboard.

Remove the camera using a pair of blunt nose tweezers.

Peel up the adhesive tape keeping the camera's cable tied down.

Remove the microphone from the motherboard with a pair of blunt nose tweezers.

Slide out the adhesive tape securing the microphone cable.

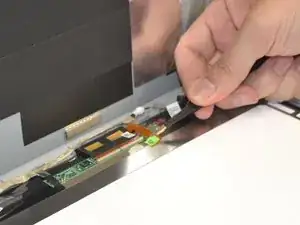

Lift up the ribbon cable contained by the adhesive strip with blunt nose tweezers.

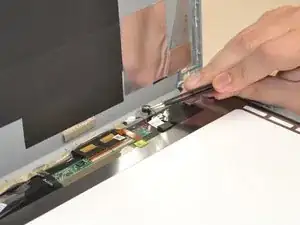

Use a spudger to flip up the retaining flap on the digitizer ribbon cable ZIF socket.

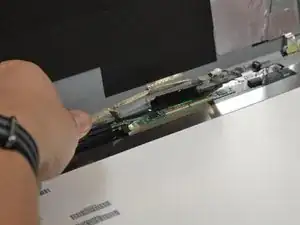

Pull the ribbon cables out of their sockets.

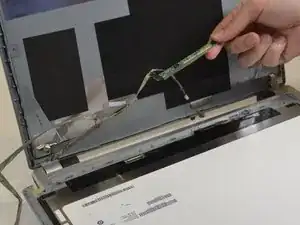

Remove the board from the laptop.

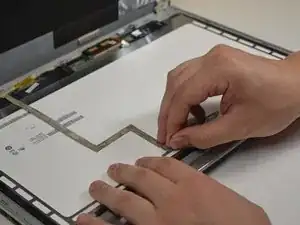

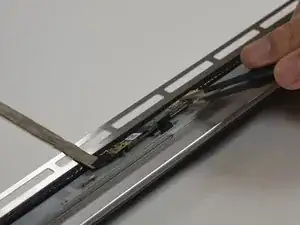

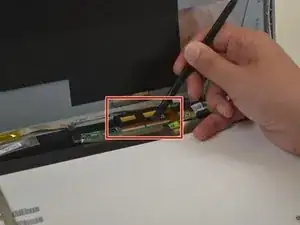

Use the blunt nose tweezers to peel up the adhesive on the display cable.

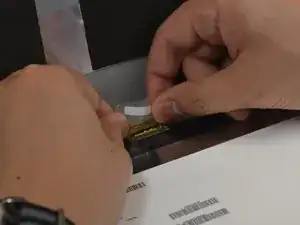

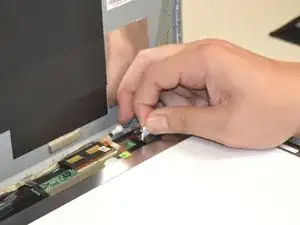

Pull on the adhesive tape to disconnect the display from the motherboard.

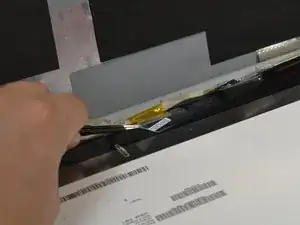

Lift the whole strip connected to the circuit board and LCD connector. Place the strip to the side where it is not in contact with the screen.

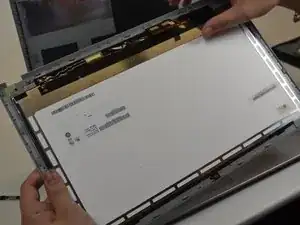

Remove the whole screen from the device.
