Acer Aspire V5-572 Cooling / Fan System Replacement

Geschrieben von: ZFix

Kommentare: 2

Acer Aspire V5-572 Cooling / Fan System Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

How to disassemble the laptop and change the Cooling system.

Werkzeuge

Schritt 1

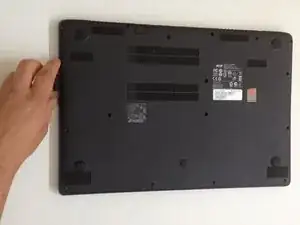

Switch-off the Laptop.

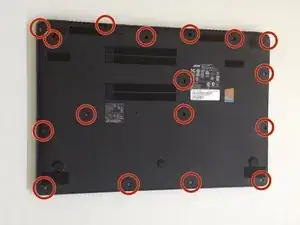

Remove the seventeen Philips #0 screws.

Schritt 2

If there is a plastic storage tray in the laptop, remove it.

Schritt 3

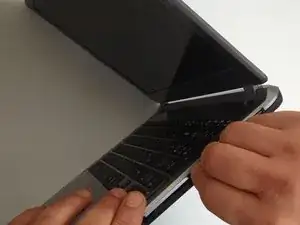

Starting from the SD Memory Card hole, start prying between the top and bottom cases.
Use plastic tools to avoid damaging the cover.

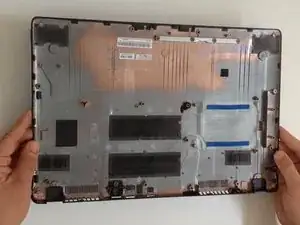

Remove the bottom case.

Love the tutorial man...but this is the most moronic thing I've ever seen...you can take batery out of laptop 15 years old in a flash, while here you have to disassemble the whole %#*@ laptop...only idiots can come up with something like that

razbojnikkuro - 07/12/16

I have to agree that this is extremely complicated and intense.

There is no way your average user should be doing this and the average user should be able to replace the battery!!

Like everything in the computer world, hardware or software, ease of use is no longer even a consideration!!

Technical Support Bots are the rule and they rarely are up to date with the pages on the website!!

Sucks!!

andy.cox - 19/05/21

Schritt 4

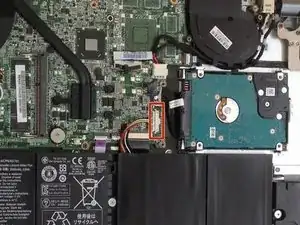

Disconnect the battery immediately for a safer repair.
Pull the battery connector away from the hard drive to disconnect it.

Schritt 5

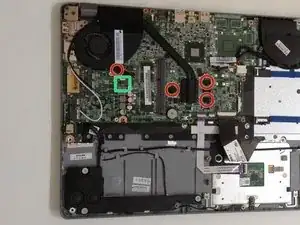

Disconnect the Fan cable.
Remove the three screws from the CPU cooler and one from the Fan module.
When you change the Cooling system, you must clean the processor from old thermal compound and put new.

Abschluss

To reassemble your device, follow these instructions in reverse order.
