Acer Aspire V5-572, V5-572G Loudspeakers and Microphone Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Acer Aspire V5-572, V5-572G Loudspeakers and Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Acer Aspire - V5-572, V5-572G

How to disassemble the Laptop and change the Loudspeaker modules.

  1. JvoQNZANKpRvqwRy

    • Switch-off the Laptop.

    • Remove the seventeen Philips #0 screws.

  2. SoIr1LhCCLyHrVGc

    • If there is a plastic storage tray in the laptop, remove it.

  3. jlfEbUJwiAfAoSgB
    jlfEbUJwiAfAoSgB
    3gbg2rNITTtwfXid
    NSWTVwIMJWSCBwZk

    • Starting from the SD Memory Card hole, start prying between the top and bottom cases.

    • Use plastic tools to avoid damaging the cover.

    • Remove the bottom case.

    Love the tutorial man...but this is the most moronic thing I've ever seen...you can take batery out of laptop 15 years old in a flash, while here you have to disassemble the whole %#*@ laptop...only idiots can come up with something like that

    razbojnikkuro -

    I have to agree that this is extremely complicated and intense.

    There is no way your average user should be doing this and the average user should be able to replace the battery!!

    Like everything in the computer world, hardware or software, ease of use is no longer even a consideration!!

    Technical Support Bots are the rule and they rarely are up to date with the pages on the website!!

    Sucks!!

    andy.cox -

  4. QicPSaYkgw1imNEx

    • Disconnect the battery immediately for a safer repair.

    • Pull the battery connector away from the hard drive to disconnect it.

  5. e6PMRMwLpRLwBNRb

    • Remove the single Phillips 0 screw securing the battery.

  6. gYNoZlxYPwouMYen

    • Remove the battery

    How much will cost me a replacement battery?

    Anthony Borg -

  7. PQsuyRN2DNYIPOOV
    PQsuyRN2DNYIPOOV
    Vbu3AhqukCeOjBJV
    PMAqudaQGM1s4ODg

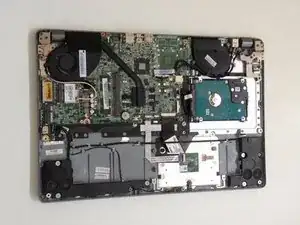

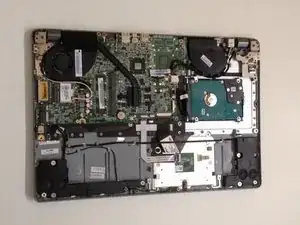

    • Disconnect the Loudspeakers cable.

    • There are two modules with loudspeakers, connected with one wire.

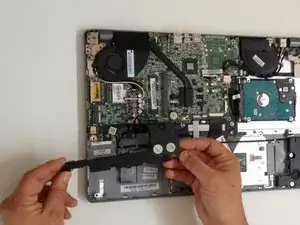

    • Unscrew the screws and remove the Loudspeaker modules together with the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
