Acer Aspire V5-591G-75KE Hard Drive Replacement

Geschrieben von: Reina Godeck
  • Kommentare: 0
Acer Aspire V5-591G-75KE Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The Acer Aspire V5-591G-75KE is manufactured with a Seagate 1 TB 2.5-Inch SATA III 5400rpm Hard Drive.

If you replace the hard drive, make sure it observes the 2.5-Inch dimensions in order to use the rubber mounting brackets that secure the drive in place.

  1. KdZacoMDXhooELHW
    KdZacoMDXhooELHW
    6qTCEahXGakbayH2
    5jZZiMCsfEyhVIDV

    • Close down the display and flip the device upside down.

    • Use a Phillips #1 screwdriver to remove 18 black 10mm Phillips Head screws in order to loosen up the protective bottom casing.

  2. VuY3H6gcoUUqRcjH
    VuY3H6gcoUUqRcjH
    siRecUXEtLITgfVv

    • With the screws removed, flip the device right-side up and open up the display.

    • Run a plastic spudger tool along the seam of the face-plate in order to loosen up the protective bottom casing.

    • Popping sounds are normal, but forceful prying can damage delicate components. Be especially careful near the USB and HDMI ports.

  3. P4cTtY4ZQFIKqPnw
    P4cTtY4ZQFIKqPnw
    iaPelbDHMCtkAZnv

    • Close the display down once more, and flip the laptop upside down, with the hinge facing away from you.

    • Do not yank the bottom casing off. There is a small speaker wire that connects it to the motherboard.

    • Taking note of the small speaker wire, gently lift only the left side of the bottom casing.

  4. ECIY1nHG5qRhakpy
    ECIY1nHG5qRhakpy
    gHPVLYH1SIvUCsi2
    kFXLy6GtCXuCKTEU

    • Using a pair of blunt tweezers, push on the tabs of the small white connector to separate it from the motherboard.

    • The entire bottom casing should lift with no resistance. If there is too much resistance, verify you removed all the screws, and run the plastic spudger tool around the face-plate again.

  5. T2b6AqXn5RpXVnRk
    T2b6AqXn5RpXVnRk
    mIVrEIfJG1gHZPey
    YGqTwj3gYA6qgWwC

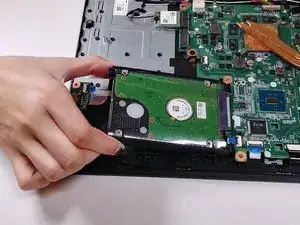

    • Using the plastic tabs, lift the hard drive slightly and pull to the left.

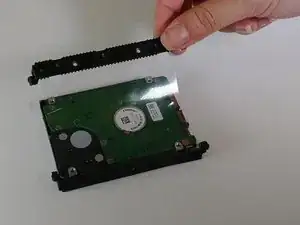

    • Remove the rubber mounting brackets from the hard drive.

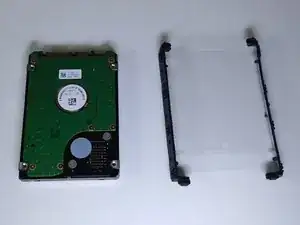

    • If you are replacing your hard drive with a new one, please note you will need to reuse the rubber mounting brackets in order to secure it in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
