Einleitung
If the Acer Chromebook 14 CB3-431-C7EX is malfunctioning due to the hinge or lid or if the screen is malfunctioning or broken, use this guide to replace the display assembly.
The hinge of the Acer Chromebook 14 allows the laptop to collapse into a more portable size. A faulty hinge may cause the Acer Chromebook 14 to have issues collapsing or expanding.
Because of the proprietary rivets used to connect the hinge to the lid (top half of the laptop), it may be extremely difficult to replace just the hinge. This guide shows how to remove/replace the entire lid of the laptop.
Before buying a replacement lid, use the guide to ensure that the hinge and display is properly connected within the laptop. You may be able to fix this issue by reconnecting a loose connector or screw.
Before beginning, be sure to power down the laptop, and unplug from the external power source(s).
-
-

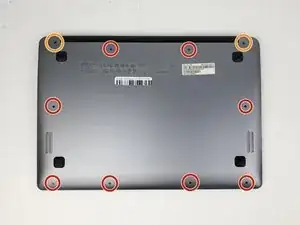

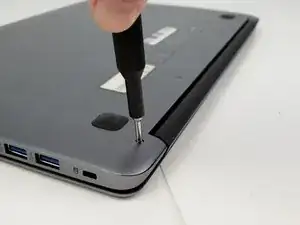

Use a Phillips #0 screwdriver to unscrew the eight 4mm screws.
-
Use a Phillips #0 screwdriver to unscrew the two 7mm screws.
-

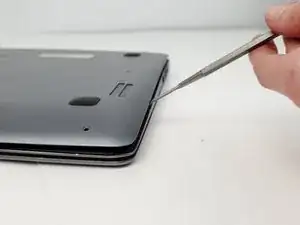

Remove the cover of the device by prying up from one of the edges with a spudger or plastic opening tool.
-
-
-

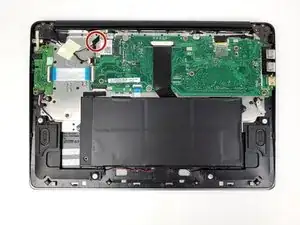

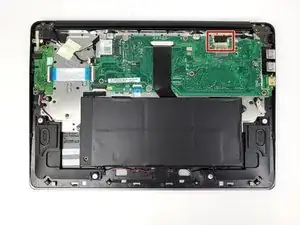

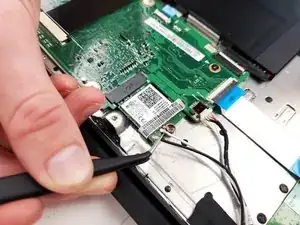

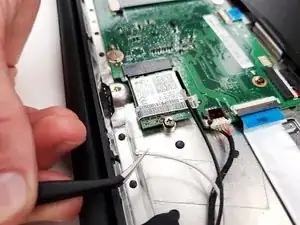

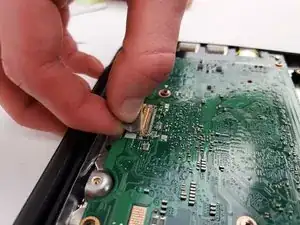

Disconnect the display panel connector from the motherboard. The connector should slide out away from the motherboard.
-
-
-

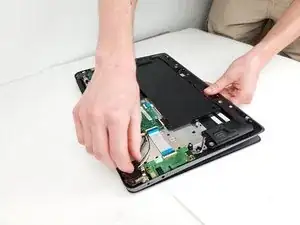

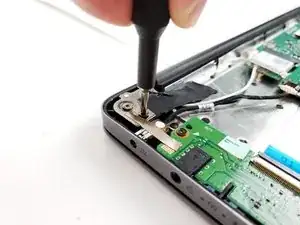

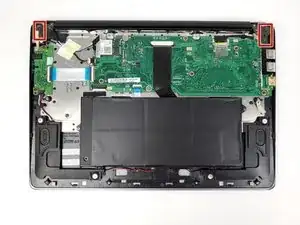

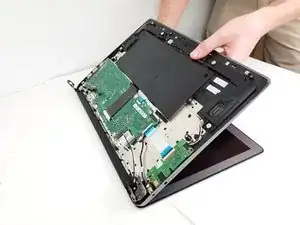

To remove the lid from the laptop, pivot each end on the hinge and lift the rest of the laptop up and away from the lid.
-

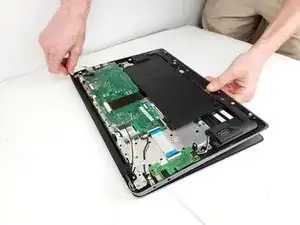

Remove the display assembly from the laptop case.
-
To reassemble your device, follow these instructions in reverse order.
