Acer Chromebook 15 CB3-532-C6T1 Wi-Fi Card Replacement

Geschrieben von: Avinesh Mohanaranjan
  • Kommentare: 0
Acer Chromebook 15 CB3-532-C6T1 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

Situations where your Chromebook is unable to display wireless settings or is experiencing dropped connections, is commonly a sign that your Wi-Fi card in the device is faulty and needs to be replaced. This guide will walk you through replacing the Wi-Fi card in your Acer Chromebook 15 CB3-532-C6T1.

Prior to beginning the repair, be sure your Chromebook is powered off and is not plugged into the wall charger.

  1. oMtgIvlxD26bGqQu

    • Place the device on a flat surface with the bottom facing upwards.

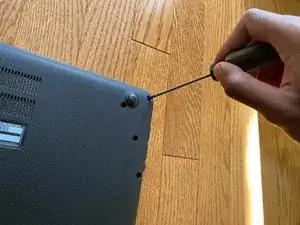

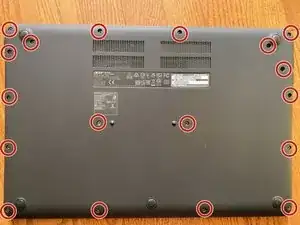

  2. PAdX5QSqL1OcLnBb
    PAdX5QSqL1OcLnBb
    yUAe5AbIPVm6DFSF

    • Unscrew the eighteen 6 mm screws from bottom of the device using a Phillips #0 screwdriver.

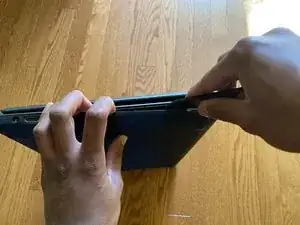

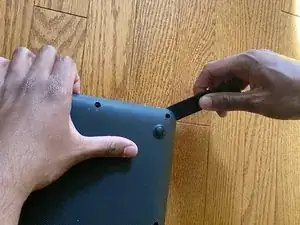

  3. MrRGlWBfqshWAsTN
    MrRGlWBfqshWAsTN
    xaLhRcqw2iWZUHsn

    • With the plastic opening tool, pry along the edges of the bottom slowly to separate the back cover.

    • Be careful not to damage or crack the back cover of the device.

  4. 5OdUR2pq3kvd4TqL
    5OdUR2pq3kvd4TqL
    3UVm24CPPTmMbVIc

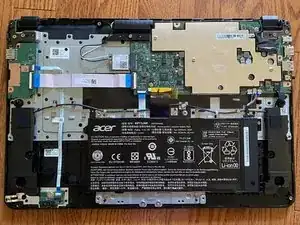

    • Carefully remove the back cover.

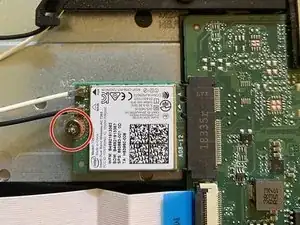

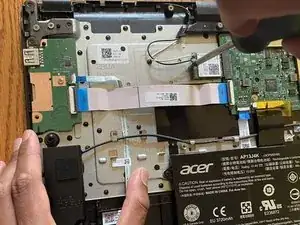

  5. 1fu2S61jSMDDKCwc
    1fu2S61jSMDDKCwc
    UrAnO1hBppwpeTUg

    • Locate the Wi-Fi card. It will be white chip beside the motherboard.

    • Remove the 3 mm screw holding the Wi-Fi card in place using a Phillips #0 screwdriver.

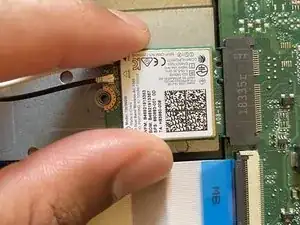

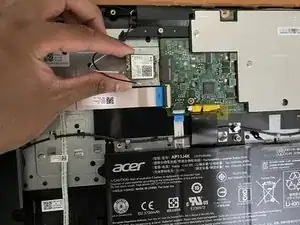

  6. 2x5GDKaL6aQX2S1P
    2x5GDKaL6aQX2S1P
    PlN3ReVveUu1WFOK
    C5lu4LWEZKPVy5uF

    • Gently grab the edges of the Wi-Fi card and pull it out from the motherboard.

    • Carefully remove the two coaxial antenna cables that attach the Wi-Fi card to the motherboard. One is black and the other is white.

    • Have your new replacement Wi-Fi card ready to place back in the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
