Acer Chromebook 15 CB5-571-C09S Screen Replacement

Geschrieben von: Sakiynah Howard
  • Kommentare: 3
Acer Chromebook 15 CB5-571-C09S Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will walk you through replacing the screen of your Acer Chromebook 15 CB5-571-C09S.

  1. 4uTusi5dcjNHoFp2
    4uTusi5dcjNHoFp2
    lFPNOECnQwnpltpj

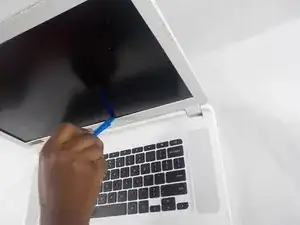

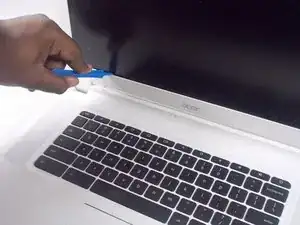

    • Wedge one of the plastic opening tool in the inside of the screen cover and run it along the inside perimeter of the screen.

  2. fPInHEGPu5T3HNKL
    fPInHEGPu5T3HNKL
    yWyYeBFchufctKeQ

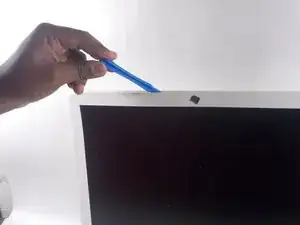

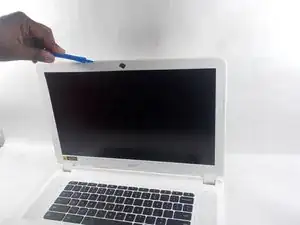

    • Wedge the plastic opening tool inside the back of the screen cover and run along the perimeter of the screen.

  3. DxpuYJK3qKhSeVRQ
    DxpuYJK3qKhSeVRQ
    U55ELlWvLoejEtNI

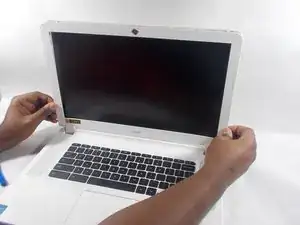

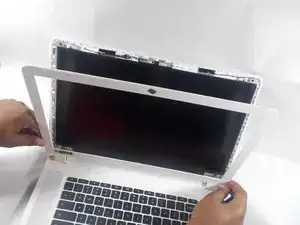

    • Remove the screen cover from the screen.

    • Pry off a pair of small covers at the back of the hinges first.

    • Carefully grab the edges of the screen cover from opposite ends and pull off the screen towards you.

    There’s a pair of small plaster cover at the back of each hinge. You need to pry them off first or they will get in the way.

    wanhyim -

  4. qA1uAxXkZlsRaEEU
    qA1uAxXkZlsRaEEU
    umluFNWpI4ILoo4g
    dVFgpghgjZvGLOZB

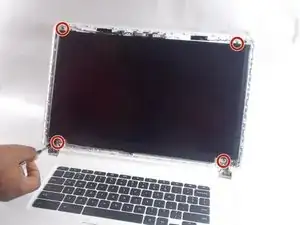

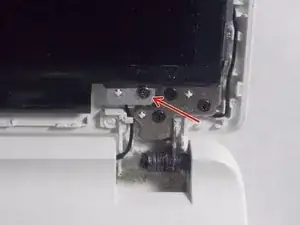

    • Unscrew the four 3 mm PH00 Phillips head screws located on the inside corners of the screen.

    • Be sure to unscrew the inner screws attached to the screen and not the outer screws.

  5. 3j1p2ecq4wpOIVjR

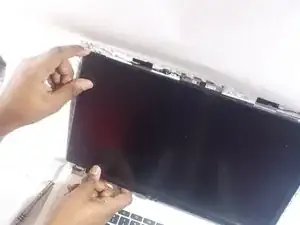

    • Grab the edges of the screen and pull it out towards you.

    • Do not try to remove the screen from the device at this point. There are still connections in the back that need to be disconnected before the screen can be removed.

  6. 61rkrBShFxwhkAwR

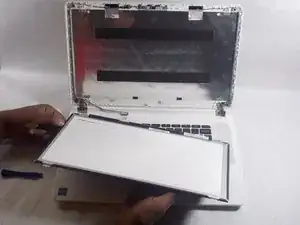

    • Take out screen from top part of the device and lay it down flat on the key board.

  7. xZ2Dhmfd12hDmqfX
    xZ2Dhmfd12hDmqfX
    pDIjfKRuSMqdpPfs
    EM1G1BmFyDrCjWMW

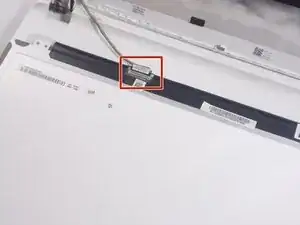

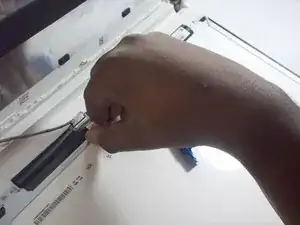

    • Remove the screen connector from the back of the screen.

    • The screen connector is a "plug" that is connected to the back of the screen with a grey wire.

    • The screen connector is attached to the back of the screen with a sticker.

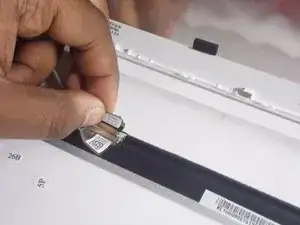

    • Peel and remove the sticker connecting the screen connector to the screen.

  8. ofRIF4ksXoJtQLE6
    ofRIF4ksXoJtQLE6
    t3aURkZHMCHiK2SN

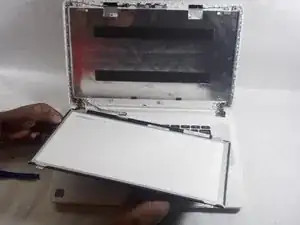

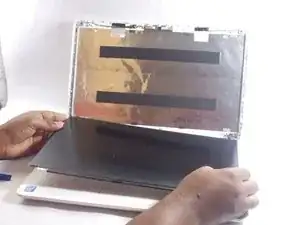

    • Lift the screen back up from the keyboard and remove from the device.

    Thanks!! Excellent guide! Just saved me 400 USD by not having to buy new chromebook when screen cable was (mysteriously) disconnected one day.

    Fred Stanley -

Abschluss

To reassemble your device, follow these instructions in reverse order.
