Acer Chromebook 15 CB5-571-C09S Solid State Drive Replacement

Geschrieben von: Sakiynah Howard
  • Kommentare: 1
Acer Chromebook 15 CB5-571-C09S Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

30 Sekunden

Einleitung

This guide will walk you through replacing the SSD in your Acer Chromebook 15 CB5-571-C09S.

  1. JMxJHm4x5MUqOri1

    • Place the device on a flat surface faced down so that the fan vents are at the top of the device.

  2. WmCaEvKYGE614Q6U
    WmCaEvKYGE614Q6U
    xOBoISsDVwOP1Q2m

    • Unscrew the eighteen 6 mm PH0 Phillips head screws from the back of the device.

  3. aGmPTYtPMOPsNqL3
    aGmPTYtPMOPsNqL3
    ghceCUUBQBMqCaJK

    • Use a plastic opening tool to pry open the back cover around the edges of the device.

    • Be careful not to crack or break the back cover of the device.

    • You will have to adjust the position of the device to pry it open along all the edges.

  4. Wme2LGVeqD2p5DYq
    Wme2LGVeqD2p5DYq
    JRtNXknG1eBVHK4D

    • Stand the device up with the hinges on top and carefully pull apart the back cover from the device.

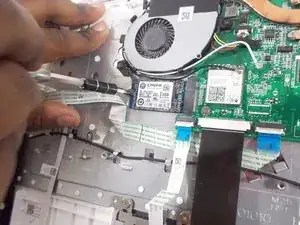

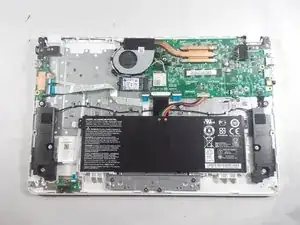

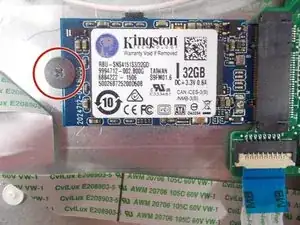

  5. CVAFEZi5gAo5ZnJH
    CVAFEZi5gAo5ZnJH
    esS2i2IXYmdSYfeE
    cRPIEHWkFJTC1CJA

    • The Solid State Drive is the blue chip locate right beneath the fan.

    • Unscrew the 3 mm PH00 Phillips head screw located on the left side of the SSD.

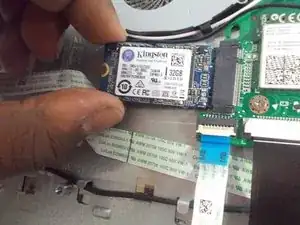

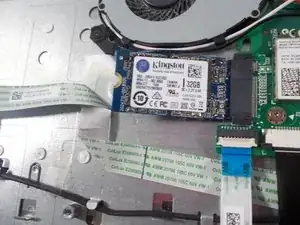

  6. jPuIWEoIjknNaKgU
    jPuIWEoIjknNaKgU
    6vKXLlOmGZ3vW5FW

    • Grab the top and bottom edges of the SSD and carefully pull it out from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
