Acer Chromebook 15 CB5-571-C09S Track Pad Replacement

Geschrieben von: Sakiynah Howard
  • Kommentare: 0
Acer Chromebook 15 CB5-571-C09S Track Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will walk you through replacing the track pad in your Acer Chromebook 15 CB5-571-C09S.

  1. JMxJHm4x5MUqOri1

    • Place the device on a flat surface faced down so that the fan vents are at the top of the device.

  2. WmCaEvKYGE614Q6U
    WmCaEvKYGE614Q6U
    xOBoISsDVwOP1Q2m

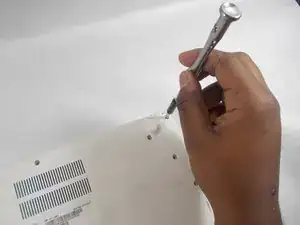

    • Unscrew the eighteen 6 mm PH0 Phillips head screws from the back of the device.

  3. aGmPTYtPMOPsNqL3
    aGmPTYtPMOPsNqL3
    ghceCUUBQBMqCaJK

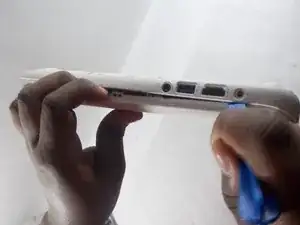

    • Use a plastic opening tool to pry open the back cover around the edges of the device.

    • Be careful not to crack or break the back cover of the device.

    • You will have to adjust the position of the device to pry it open along all the edges.

  4. Wme2LGVeqD2p5DYq
    Wme2LGVeqD2p5DYq
    JRtNXknG1eBVHK4D

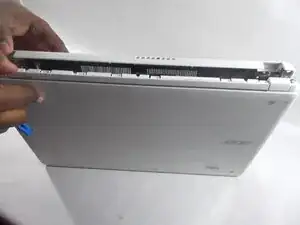

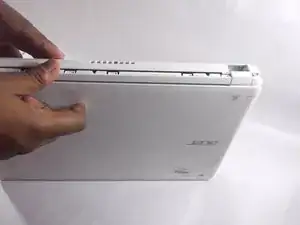

    • Stand the device up with the hinges on top and carefully pull apart the back cover from the device.

  5. Z3NgfdmL2UxbkKFZ
    Z3NgfdmL2UxbkKFZ
    YeVhMUWkcClIcsWl
    2Av1jE2CsXGuQNNP

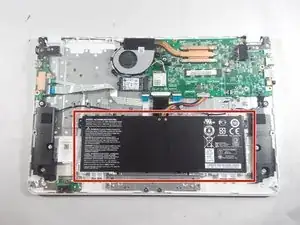

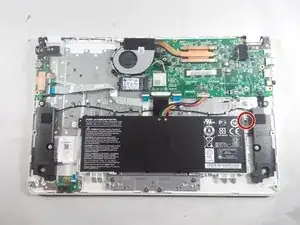

    • The battery is the large black rectangle located in the bottom center of the device.

    • Unscrew the single black 5 mm PH00 Phillips head screw holding the battery in place located at the top right corner of the battery.

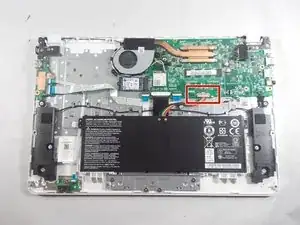

  6. RdY2RNuuYJjOEos1
    RdY2RNuuYJjOEos1
    QMXbNBLEjEllu2mt
    1PAmgvIPKBYLa6qc

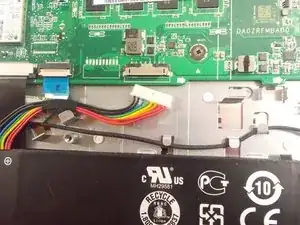

    • Disconnect the battery connector from the motherboard using two plastic opening tools.

    • The battery connector is the white "plug" that connects the battery to the motherboard with rainbow colored wires attached to it.

    • Use two of the plastic opening tools on either edge of the battery connector and carefully pull out the battery connector out from the motherboard.

  7. L3FmIJKmQFP1vW1x
    L3FmIJKmQFP1vW1x
    IweZMisYJoWVpqvA

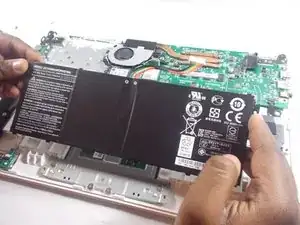

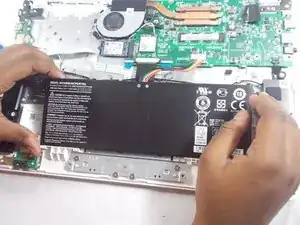

    • Once the battery has been disconnected from the motherboard it can easily be removed from the device.

    • Grab the top edge of the battery and carefully pull it up and out of the device towards you.

  8. bGSm2TtF1ZVvbI4D
    bGSm2TtF1ZVvbI4D
    CgMxYS6LiHWZIRT1

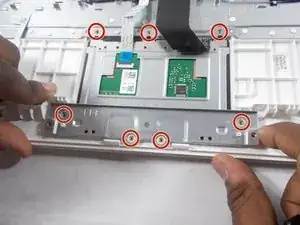

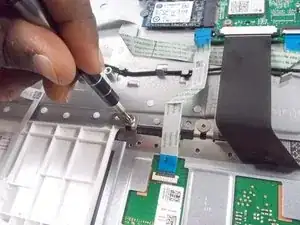

    • The track pad is located in the bottom center of the device where the battery used to be.

    • Unscrew the seven 2 mm PH00 Phillips head screws.

  9. xOYjJPeiLlhFNpBB
    xOYjJPeiLlhFNpBB
    gXvN4rpfFS1vgbVI
    anpEXPpFLD4OCRKa

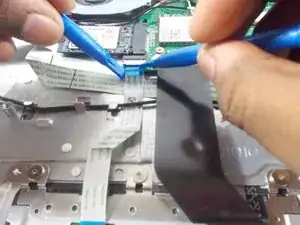

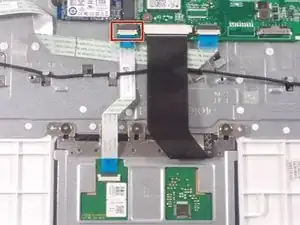

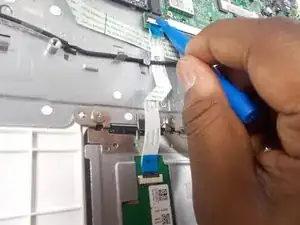

    • Remove the track pad connector from the motherboard.

    • The track pad connector is the white "plug" located at the bottom right corner of the motherboard with a blue and silver ribbon attached to it.

    • Use two of the plastic opening tools to grab either side of the track pad connector and carefully pull it out from the motherboard.

  10. 2VZAZBrcxwIOABXD
    2VZAZBrcxwIOABXD
    OV25DnNkdBcPLFoq
    ZNMo6FUNxoTdtJcw

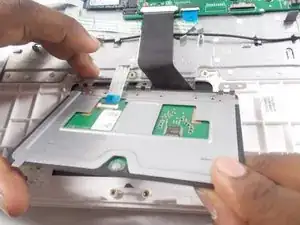

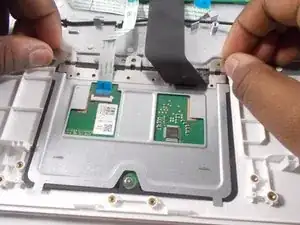

    • Grab the track pad from its corners and carefully pull it up and out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
