In this replacement guide, you will learn how to safely remove and install a cooling fan.
Ersatzteile
-
-

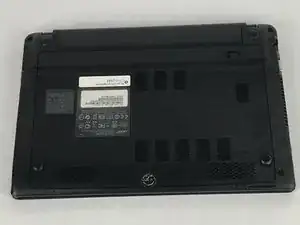

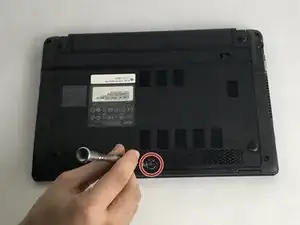

Locate the 6 mm Phillips #00 screw that holds the back cover together. Use your driver with the PH00 bit attached to unscrew it.
-

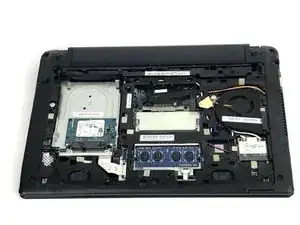

Once completely unscrewed, carefully lift the cover off.
-
Place the cover and screw safely to the side for now.
-
-
-
Now take your anti-static wrist strap and place it tightly on your wrist.
-

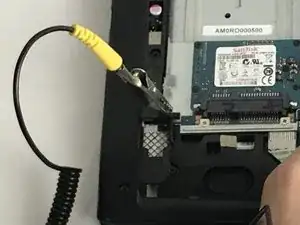

Attach the alligator clamp of the wrist strap to something that will ground yourself to avoid possible electric zaps.
-
-
-

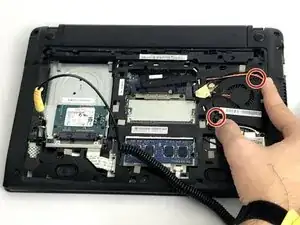

Locate the two 6 mm Phillips #00 screws on the fan port.
-

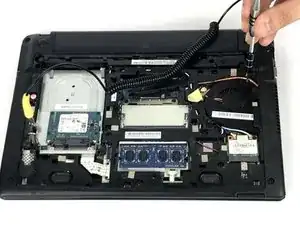

Unscrew the two screws and place them aside for now.
-
-
-

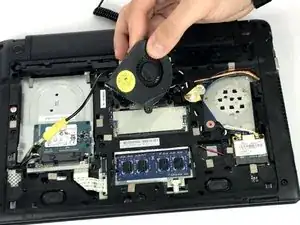

Carefully remove the fan from its port. You may need to use a little force as there will be an adhesive on the right side of the fan keeping it in place.
-

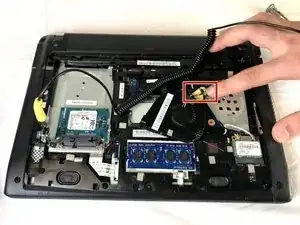

Locate the Molex cable connecting the fan to its port in the top left corner.
-
Disconnect the cable.
-
To reassemble your device, follow these instructions in reverse order.
