In this replacement guide, you will safely remove and install a hard drive.
Ersatzteile
-
-

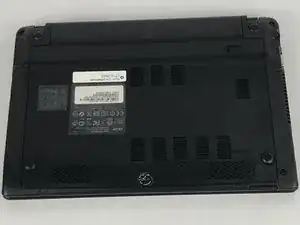

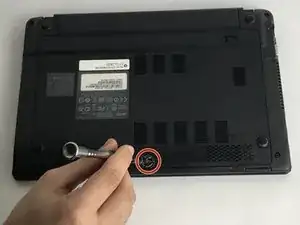

Locate the 6 mm Phillips #00 screw that holds the back cover together. Use your driver with the PH00 bit attached to unscrew it.
-
Once completely unscrewed, carefully lift the cover off.
-
Place the screw and cover safely to the side for now.
-
-
-

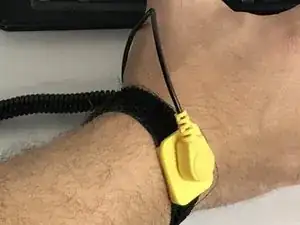

Now take your anti-static wrist strap and place it tightly on your wrist.
-

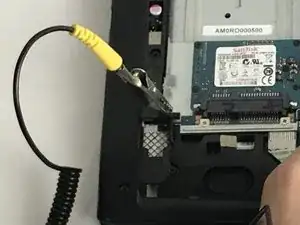

Attach the alligator clamp of the wrist strap to something that will ground yourself to avoid possible electric zaps.
-
-
-

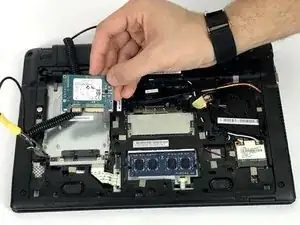

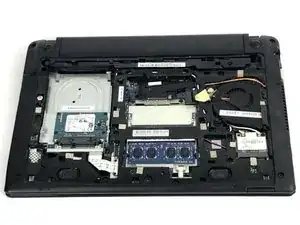

Locate the hard drive.
-

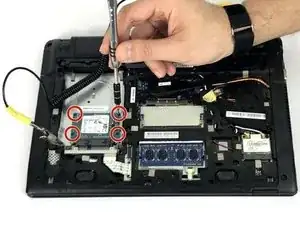

Locate the four 3 mm Phillips #00 screws on each corner of the hard drive.
-
Take your driver with the PH00 bit attached and unscrew all four screws.
-
Place the screws off to the side for now.
-
To reassemble your device, follow these instructions in reverse order.
