Einleitung

This guide will provide the instructions needed in order to replace the motherboard.

  1. UHLZbZDhDxWNOToB
    UHLZbZDhDxWNOToB
    pCv6PEU5ANRDoXcS
    • Remove the one 4.3mm Phillips #1 screw holding the back cover on.

  2. F3KxBJmc6STXFkIq
    • Locate the RAM and the metal clips holding the RAM in place.

  3. rRMccdKKLeEYRjWG
    rRMccdKKLeEYRjWG
    IXBtZ14HAWVx22Bo
    • Push the two clips outwards at the same time with your fingers. The RAM will gently pop upwards.

  4. FdjbIhHJ2y6UoIDF
    • Pull the RAM out of the slot.

  5. CSRqoA1LQDWNXKP2
    CSRqoA1LQDWNXKP2
    FXWbyZYCYAgZRLPj
    JTDadTsC2NZoRHQo
    • Using the Phillips #1 screwdriver, remove the screw from the Wi-Fi card.

    • Carefully remove the piece of tape to allow for more room to remove the Wi-Fi card.

    • Use the blue plastic opening tool to lift and remove the Wi-Fi card from its socket.

  6. ZnCP2fimqYLvM6tu
    ZnCP2fimqYLvM6tu
    AZTQHEsujIhOhLoH
    AYDyY4RyqvFQgBje
    • Use the blue plastic opening tool and carefully remove the connectors from the Wi-Fi card.

    Great instruction I FEEL like an It. TY guy.

    Pinky -

  7. bwpfxwG11Db1ATek
    bwpfxwG11Db1ATek
    QbL2bXhnEY6yOIhs
    • Remove the Wi-Fi card.

  8. 5ujabTnHgQVldIWf
    • Unscrew the circled screws, a total of 17 (15 M 2x6 and 2 M 2x3), with a cross-head screwdriver.

    Hi, I bought this laptop at Groupings the seller said it was new. Lol know with your intro on this video the Motherboard on this one is different. On the left side it has that black small rectal. Piece on the left and it has a green piece that says SanDisk. Why this one has that piece n the one you're viewing in your video doesn't?

    Pinky -

    Sorry is GROUPON

    Pinky -

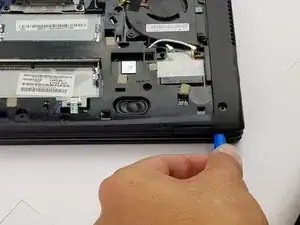

  9. OnSvdfUXvXdxYyrY
    OnSvdfUXvXdxYyrY
    JQwDxo3dXwNVw6VH
    4FyWlDNdWTCeIRAc

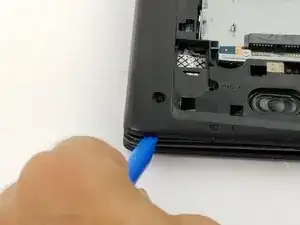

    • Using the blue plastic opening tool, work your way around the perimeter of the laptop and remove the bottom frame.

    • Be careful though, because we will not be pulling it completely apart since we will need to disconnect 2 ribbon cables first (shown in next step).

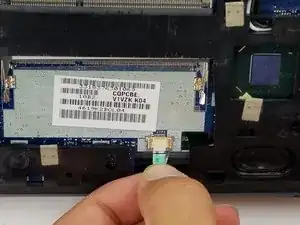

  10. rNlZQNYZiCOaqOiM
    rNlZQNYZiCOaqOiM
    uKMnNXTsgSXtleAn

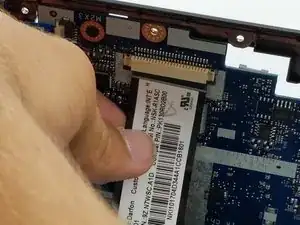

    • Remove the green ribbon on the backside of the laptop by pulling on it lightly as shown.

    • Gently remove the back ribbon that is holding the two parts of the laptop together (found between the two parts that are being pulling apart).

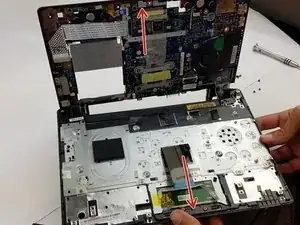

  11. dYrDPGglffy5pXRM
    • Now completely pull apart the motherboard from the underside of the laptop by pulling on the location of the arrows.

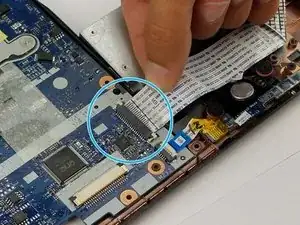

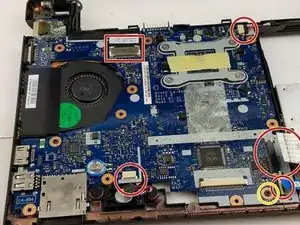

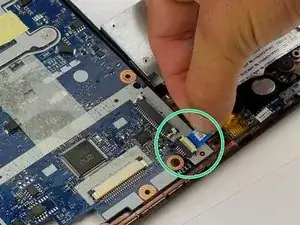

  12. XvxdWlTJPKRTBVPV
    XvxdWlTJPKRTBVPV
    JhaolRHfTVKIOlIe
    CicLGSPnNNeCQRAY
    • Disconnect the five ribbons by pulling gently on the ribbon.

    • Unscrew the M2x3 screw.

    • Disconnect the blue connector from the motherboard.

    • Disconnect the wider white connector from the motherboard.

  13. EkeGL2rSnuFeQvfq
    EkeGL2rSnuFeQvfq
    QsYTZCA2nBZko2hQ

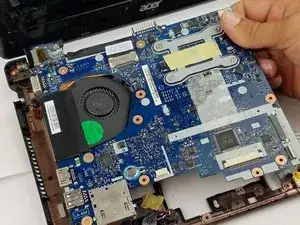

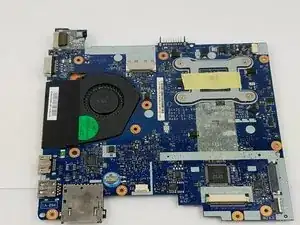

    • Remove the motherboard from the frame.

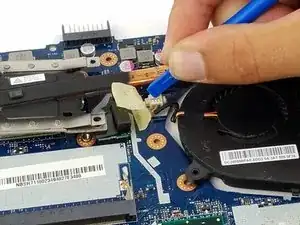

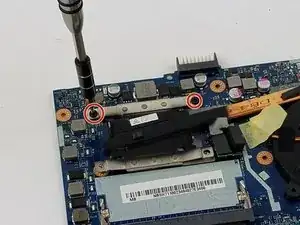

  14. aCEGmmROekXZiYfk
    aCEGmmROekXZiYfk
    CMBZ3SN6nmIgGPAi
    ZyhoBQ1uahdk3nl4

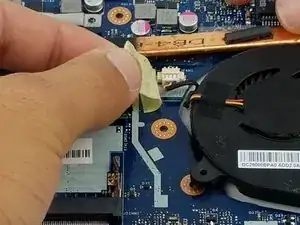

    • Remove the fan by unscrewing two M2x3 screws.

    • Peel the tape off the ribbon connection for easy access.

    • Use the plastic opening tool to disconnect the connector.

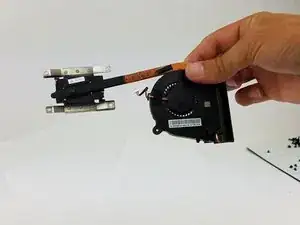

  15. cGi6t1aJ3usXLp4W
    cGi6t1aJ3usXLp4W
    4RxKgDEYfLMBHimP

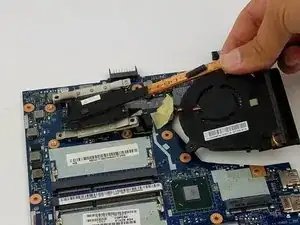

    • Remove the fan.

  16. MSrAfRiBdMKd5VJn

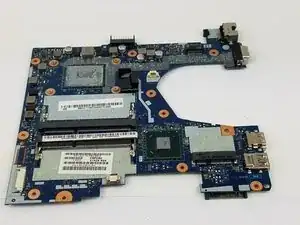

    • The motherboard is now bare of any extras and is ready to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
