Acer Chromebook C710-2856 RAM Replacement

Geschrieben von: Juan Villafuerte
  • Kommentare: 0
Acer Chromebook C710-2856 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

This guide will help you remove and replace the RAM from your Acer Chromebook C710-2856.

  1. UHLZbZDhDxWNOToB
    UHLZbZDhDxWNOToB
    pCv6PEU5ANRDoXcS

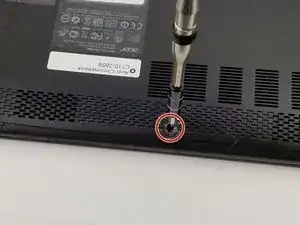

    • Remove the one 4.3mm Phillips #1 screw holding the back cover on.

  2. F3KxBJmc6STXFkIq

    • Locate the RAM and the metal clips holding the RAM in place.

  3. rRMccdKKLeEYRjWG
    rRMccdKKLeEYRjWG
    IXBtZ14HAWVx22Bo

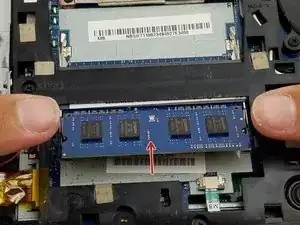

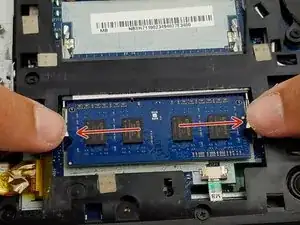

    • Push the two clips outwards at the same time with your fingers. The RAM will gently pop upwards.

  4. FdjbIhHJ2y6UoIDF

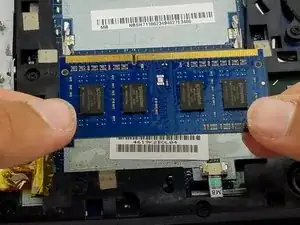

    • Pull the RAM out of the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
