Acer Chromebook C720-2827 LED PCB Replacement

Geschrieben von: Sarah Westberg
  • Kommentare: 0
Acer Chromebook C720-2827 LED PCB Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace you Acer Chromebook C720-2827 LED PCB. The LED PCB is the printed control board controlling the two status LEDs (light emitting diode) on the bottom right edge of the laptop. Replace it if these two LEDs cease lighting up while the device is charging.

  1. MyLdgQf6Zn1tO2FI
    MyLdgQf6Zn1tO2FI
    dLJ25EhqNmTKN3dr

    • Remove the thirteen 6.0mm screws on the back panel using your Phillips #1 screwdriver.

  2. lR5WbnKWoRx62Quq
    lR5WbnKWoRx62Quq
    KqBStIyOZagSGgRY

    • Pry the back panel open with the plastic opening tool.

  3. bEifEDb6GbWFS6ZW

    • Remove the two 6.0mm screws securing the battery with your Phillips #1 screwdriver.

  4. SELp6IgiYH6eX1pq
    SELp6IgiYH6eX1pq
    cujNNOK6lBBkW2RD

    • Carefully pull out the battery wire connected to the battery port.

  5. r6rbuF3hnZdHSXpk

    • Slowly lift the battery to remove it from the Chromebook.

  6. PAGlIAi22sLXKfcF
    PAGlIAi22sLXKfcF
    lNLF5NpXeFwVYu22
    m1rFoH4sVY1oVUDG

    • Use the Phillips #1 screwdriver to remove the two 3.1mm screws from the LED PCB.

    • Lift the LED PCB up with your fingers and flip it over revealing the ZIF connector.

    • The LED PCB is still tethered to the daughterboard via a ribbon cable so be sure not to yank it out or it could cause damage to the cable or its connectors.

  7. Qg5qOQySrLQ64Dms
    Qg5qOQySrLQ64Dms
    WVdZwrjCYRFOCaFj
    tSFLXwPmUKNQGOXm

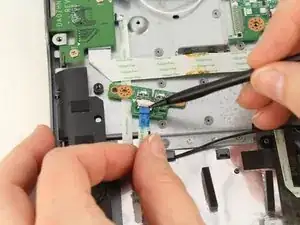

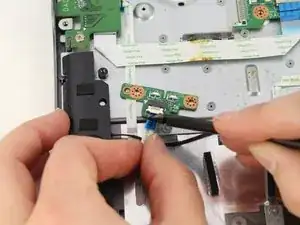

    • Set the LED PCB down and use your spudger to flip up the white bar of the ZIF connector.

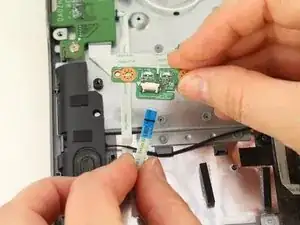

    • Pull the ribbon cable out with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
