Use this guide to replace the screen display for the Acer Chromebook c-720 2844.
The screen display is used to represent information visually computer.
To know if you have a faulty screen display include: no images will be present on your screen or if you have missing pixels.
Before referring to this guide make sure you look at the Acer Chromebook c-720 2844 troubleshooting page to ensure the screen display is the problem. Make sure to completely shut off the device before starting the replacement procedure for this guide.
Werkzeuge
-
-

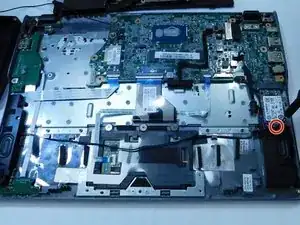

Unscrew and remove the 1 cm Phillips #00 screw that secures the solid state drive.
-

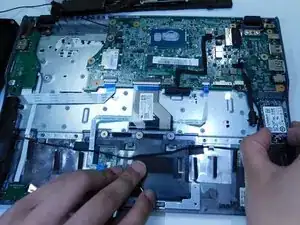

Lift and pull towards you to remove.
-
-
-

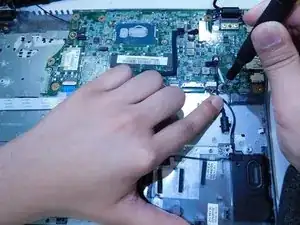

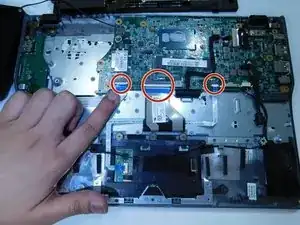

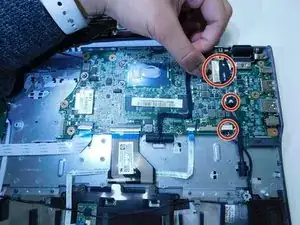

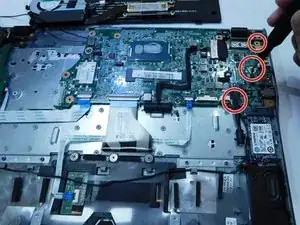

Unlock the cables shown by lifting the white tab on each.
-

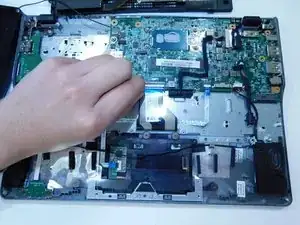

Pull back on the blue tab to remove each cable from the motherboard.
-
-
-

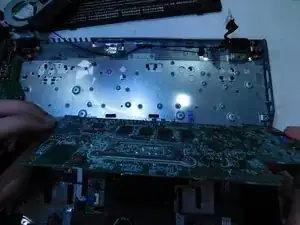

Remove the motherboard by shifting to the left and lifting up.
-
Unhook the black and white cables from underneath the motherboard.
-
-
-

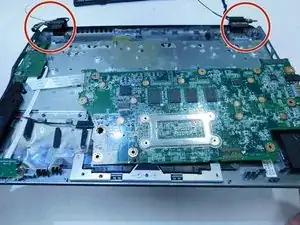

Unscrew and remove the 1 cm Phillips #00 screws from the display brackets.
-
Lift bracket to detach from the screen.
-
To reassemble your device, follow these instructions in reverse order.
