Acer Chromebook C720-2848 Back Cover Replacement

Geschrieben von: Robert Escobio
  • Kommentare: 0
Acer Chromebook C720-2848 Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

Use this guide to replace the back cover of your device.

  1. UirWjoRAiUTTxL2U
    UirWjoRAiUTTxL2U
    MHGfnuWRkqDqZFix

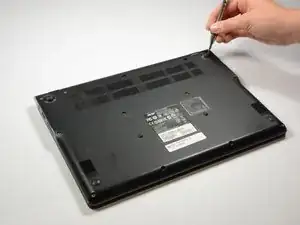

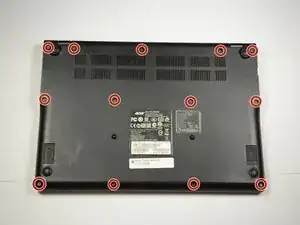

    • Use a Phillips head screw driver to remove the 13 screws in these locations.

  2. lvuNOgUfFvXZO6XU
    lvuNOgUfFvXZO6XU
    xqSCXbJxiAR3p1hX
    APrxVDhTHxWu3etk

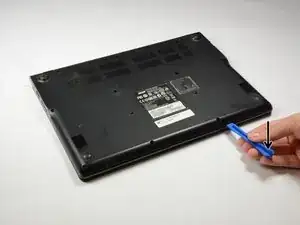

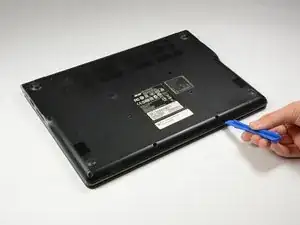

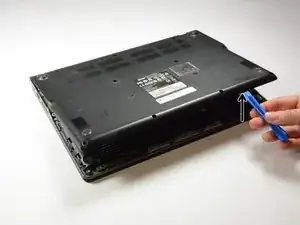

    • Use a plastic spudger to pry up the bottom cover and remove it.

    • Be sure to pry along other edges if necessary to avoid damaging the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
