Acer Chromebook C720-2848 Keyboard Replacement

Geschrieben von: Richard Schmidt
  • Kommentare: 3
Acer Chromebook C720-2848 Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

30 - 35 Minuten

Einleitung

In the case that your keyboard does not work, you may need to replace it. This guide will walk you through how to remove your keyboard so you can replace it. You'll only need a #0 Phillips Head Screwdriver and a plastic spudger.

  1. UirWjoRAiUTTxL2U
    UirWjoRAiUTTxL2U
    MHGfnuWRkqDqZFix

    • Use a Phillips head screw driver to remove the 13 screws in these locations.

  2. lvuNOgUfFvXZO6XU
    lvuNOgUfFvXZO6XU
    xqSCXbJxiAR3p1hX
    APrxVDhTHxWu3etk

    • Use a plastic spudger to pry up the bottom cover and remove it.

    • Be sure to pry along other edges if necessary to avoid damaging the back cover.

  3. IRTcLJkUDVGxbBbo
    IRTcLJkUDVGxbBbo
    fIVlxKvATfVPgnaX
    xXIyIsyuLJQICWhg

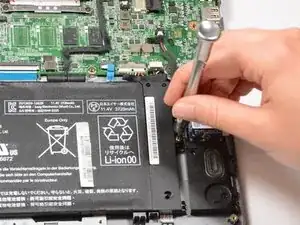

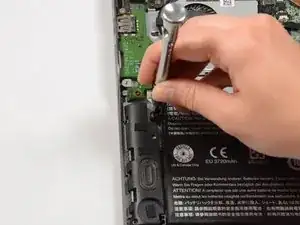

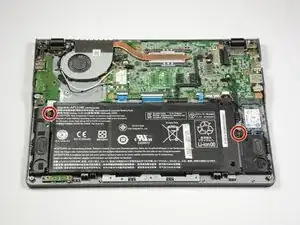

    • Unscrew the 2 battery screws.

    • Make sure you keep these screws separate from the back cover screws; they are different!

  4. LRPehsTGoBsyRnc6
    LRPehsTGoBsyRnc6
    hnZ6wbGlZdWhLJD6

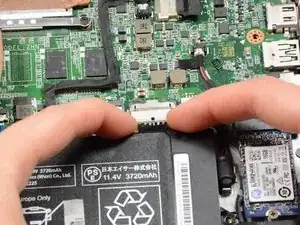

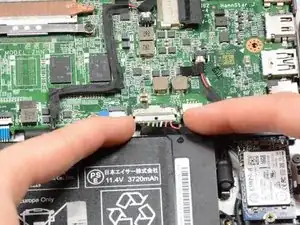

    • Use two fingers to unplug the battery-to-motherboard connection.

  5. YYnPYHMGdoCp4lfE

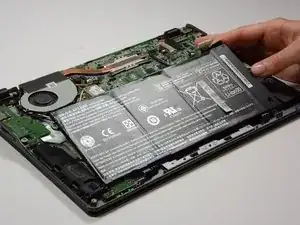

    • Take out battery by lifting it up in the manner pictured.

  6. 4Mh2sssStQRqPTZC
    4Mh2sssStQRqPTZC
    EQHV2rECrESX6YDi

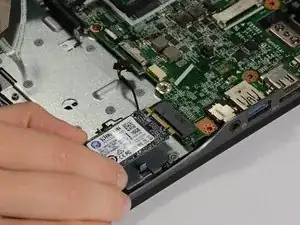

    • Unscrew screw holding SSD card in place.

    • Slide out the SSD card towards you to remove it.

    • The SSD card is the blue chip on the right connected to the motherboard.

    • Be sure to store this screw apart from the others as it is a different length.

  7. YEgDrSUwUYcN3ewG
    YEgDrSUwUYcN3ewG
    PLJrN4IKLDtoTctL
    r2crsMM6bGokFyee

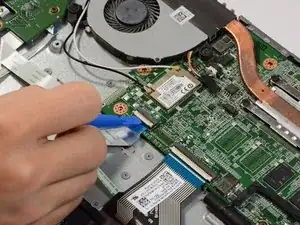

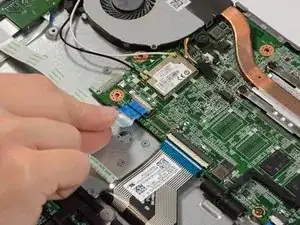

    • Remove the three ribbon cables connected to the bottom of the motherboard.

    • Use the plastic spudger to lift the white hinges from on top of the ribbon cables.

    • Then gently pull the cables out.

  8. DIDSReuXpWMEyc3y
    DIDSReuXpWMEyc3y
    T5X51JfNIQGc3cZO
    fy1WM2AaGomIEAYF

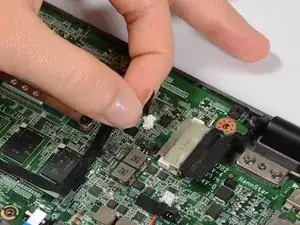

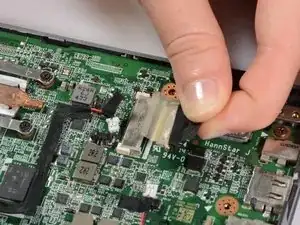

    • Remove 4 connectors from the right side of the motherboard.

    • All of these connectors release by simply pulling back.

    • To disconnect the connector shown in the third picture, you will need to peel back some tape first.

  9. ZMdCr35TyXAl5EEJ
    ZMdCr35TyXAl5EEJ
    DpsFOyPnuxThSgHx
    fPJWVwTutmXksKnk

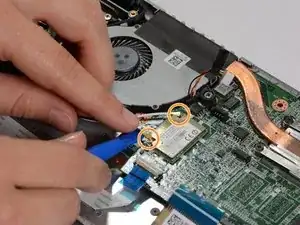

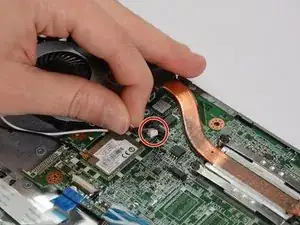

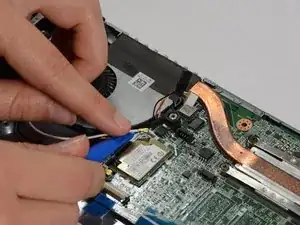

    • On the left side of the motherboard, remove one more connector and two cables.

    • To remove the cables, lift them up with a plastic spudger.

    • Take note of which cable connects where.

  10. 2nFVEPMxOaYALYa2
    2nFVEPMxOaYALYa2
    Xtt1U62HvRL1XbD5
    sXCVp2YQdNGXliGU

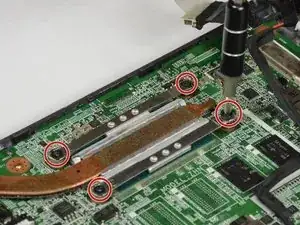

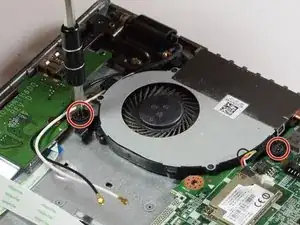

    • Remove the 2 fan screws and the 4 heat sink screws.

    • The screws don't necessarily need to be removed from the component, but rather just loosened enough to remove the component from the motherboard.

    • Now remove the fan/heat sink component.

    • Once again, make sure to keep these screws separate from all others.

  11. gxVE1uuJ2C33LMkp
    gxVE1uuJ2C33LMkp
    cuqDOoSohqHuhOLB

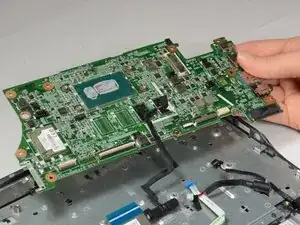

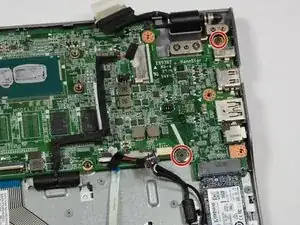

    • Remove the 2 motherboard screws.

    • Now you can remove the motherboard.

    • Be careful not to damage any of the loose connectors and cables you disconnected in the previous steps.

  12. iUQv1vQBGcAaB6iv
    iUQv1vQBGcAaB6iv
    HrsR5mH1bSjfLQ3l
    QDQNGTodHssnBTCE

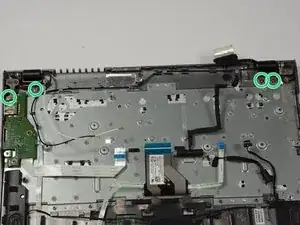

    • Remove the 4 keyboard screws.

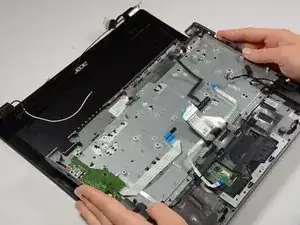

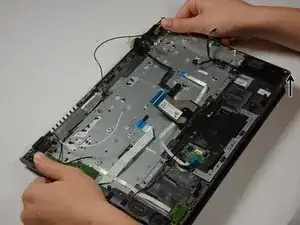

    • Lastly, remove the keyboard. To do this, slightly hinge open the laptop and pull back.

    • Make sure to be wary of the cables that connect to the display when removing the keyboard.

    Avec un clavier seul, vous êtes bloqués ici ! (comme moi)

    MA SOLUTION avec un pistolet à colle (mon ordi marche mais ce n’est pas une méthode conventionnelle !):

    1) Les deux enceintes : les dévisser et les décoller (elles sont collées à une petite mousse). Enlever en même temps la carte verte lecteur usb-sd

    2) Arracher ensuite (c’est le plus pénible) tous les petits ronds de plastique qui tiennent la plaque en métal au dessus du clavier (je l’ai fait au couteau).

    3) retirer la plaque en métal (ça coince des fois avec des résidus de ronds en plastique, il faut peut être un peu tirer), remplacer le vieux clavier par un neuf.

    4) on repose la plaque en métal et on remplace les ronds en plastique par des ronds de colle de pistolet à colle. On recolle les enceintes, revisse le tout et on retrouve le fil du tuto.

    adrien -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Richard Schmidt

Mitglied seit: 19/03/18

328 Reputation

2 Kommentare

This should really be title keyboard ASSEMBLY replacement. The keyboard involves quite a bit more work on its own.

avarno -

! ATTENTION ! Comme l’a dit avarno il y a quelques mois, le tutoriel ne propose QUE DE REMPLACER LE BLOC CLAVIER + PAVÉ TACTILE. Sur Ifixit on peut aussi acheter le clavier seul (ce que j’ai fait). On se retrouve bloqué à l’étape 12. J’ai posté une solution en commentaire de l’étape 12 (peut être pas très conventionnelle, à vos risques et périls !)

adrien -
