This is the battery replacement guide for the Acer Chromebook C731-C8VE. By following this guide, you should be able to completely remove the battery from your device. Make sure to follow all hazard warnings for your safety.
Werkzeuge
-
-

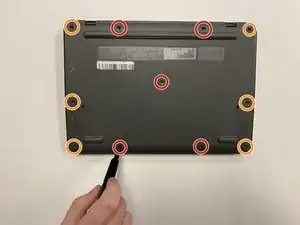

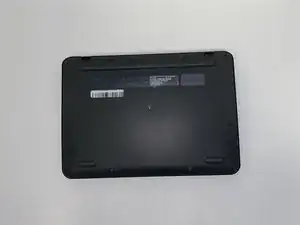

Use a JIS #00 screwdriver to remove the 11 screws on the underside of the laptop.
-
These 2 mm screws have washers and will be located on the left and right of the device.
-
The 2 mm screws marked orange do not have washers attached and must be placed in these specific areas.
-
-
-

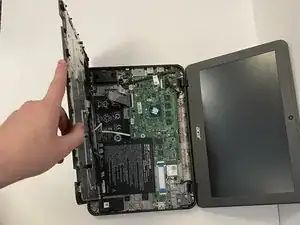

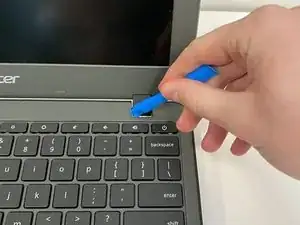

Use the iFixit opening tool to remove the keyboard from the device by prying it loose from the base.
-
-
-

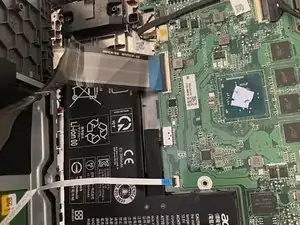

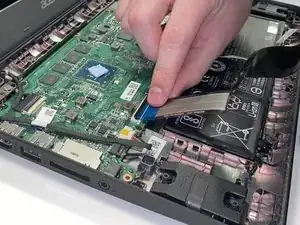

Detach the wires connecting the keyboard and the touchpad to the motherboard by lifting the black connectors up.
-
-
-

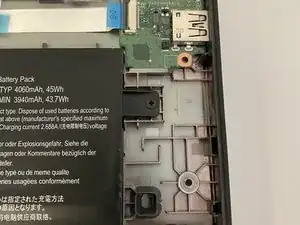

Use the JIS #00 screwdriver to take out the 1mm screw that connects the battery to the base.
-

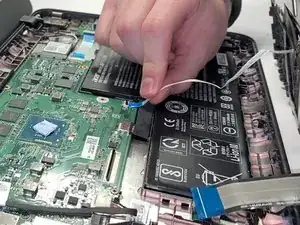

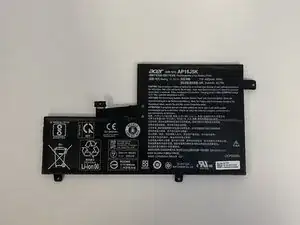

Detach the battery from the motherboard by lifting it up gently to avoid any damage to the motherboard..
-
To reassemble your device, follow these instructions in reverse order.
