Einleitung

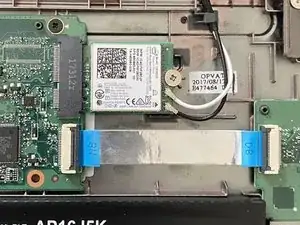

This is the Wi-Fi card replacement guide for the Acer Chromebook C731-C8VE. By following this guide, you should be able to completely remove the Wi-Fi card from your device. Make sure to follow all hazard warnings for your safety.
Werkzeuge
-
-

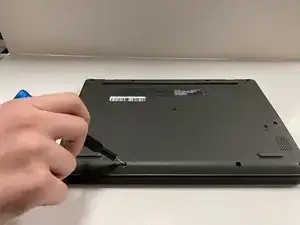

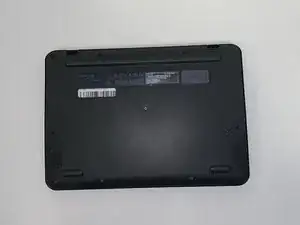

Use a JIS #00 screwdriver to remove the 11 screws on the underside of the laptop.
-

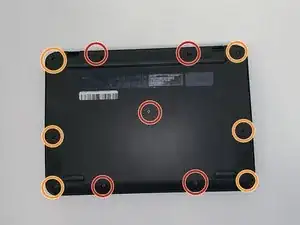

These 2mm screws have washers and must be placed in these specific areas.
-
The 2mm screws marked orange do not have washers and will be placed on the left and right of the device.
-
-
-

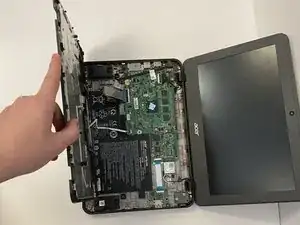

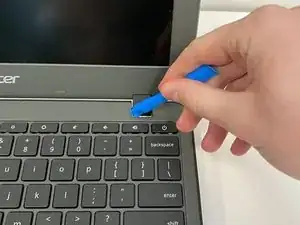

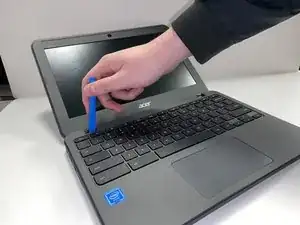

Use the iFixit opening tool to remove the keyboard from the device by prying it loose from the base.
-
-
-

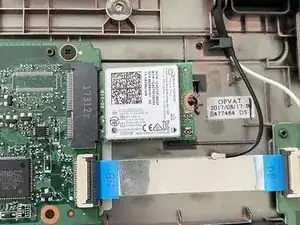

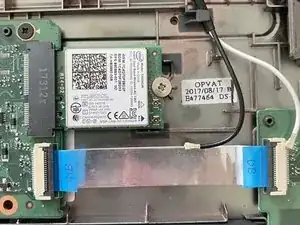

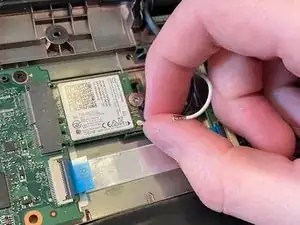

Use the JIS #00 screwdriver to unscrew the single 1mm screw connecting the Wi-Fi card to the base.
-

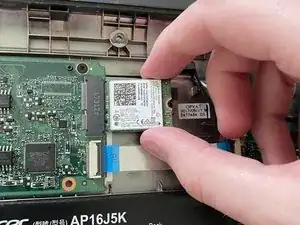

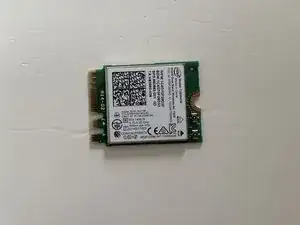

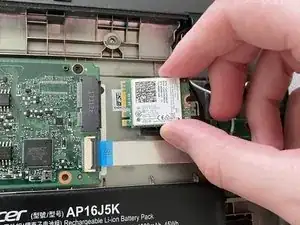

Once the screw is removed, the Wi-Fi card will pop up.
-
To reassemble your device, follow these instructions in reverse order.
