Acer Chromebook C732 Screen Replacement

Geschrieben von: Jacob Mehnert
  • Kommentare: 0
Acer Chromebook C732 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

  1. U51k2bP2HCqSQBAw

    • Make sure your device is turned off and disconnect your battery from the motherboard.

    • You can find a detailed guide for getting to and replacing this device's battery here

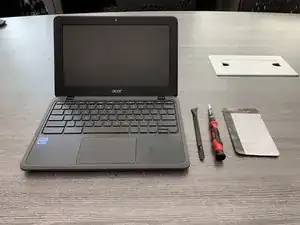

  2. RJKTWsDCRCqJRv2I

    • Open the Chromebook so the display is facing towards you.

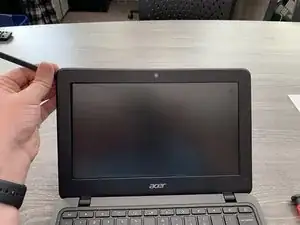

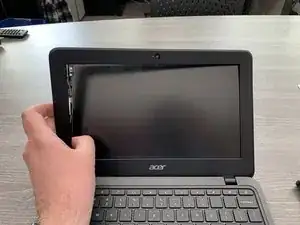

  3. WlkxDFuxMkYqoaSE
    WlkxDFuxMkYqoaSE
    iJohhoRQfOsmGTJb

    • Using a plastic opening tool or a spudger, carefully pry the plastic bezel around the screen.

    • If you start in the corner, you should be able to release the tabs there. Once those tabs have been released, you can release the rest by hand.

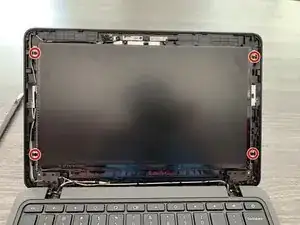

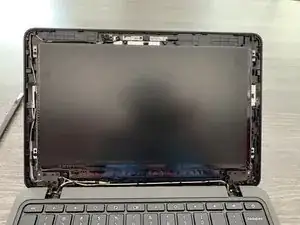

  4. GBANMdtqTxAEHfZZ
    GBANMdtqTxAEHfZZ
    JSVAWJ5ExVHJayRl
    Y2Dy2icLk1XQEbwM

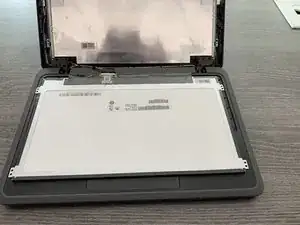

    • Remove the four screws holding the display in place with a Phillips #1 screwdriver.

    • Carefully lower the display to rest on the keyboard.

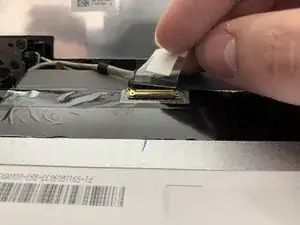

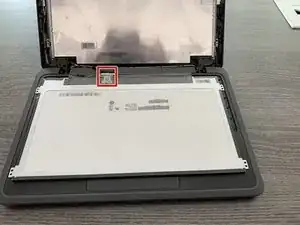

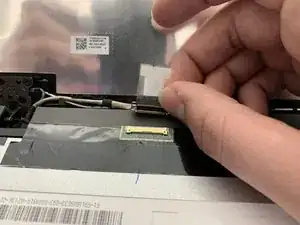

  5. h41bPrBvG1nHIFlW
    h41bPrBvG1nHIFlW
    aAckShH3DSsKMtru
    IZDq2xBJZALdPMq2

    • The display connector is located on the back and is covered by some adhesive tape.

    • Carefully peal the tape back

    • Once the tape is peeled back, you can lift the bar to disconnect the display cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
