Acer Chromebook C740 LCD Screen Replacement

Geschrieben von: Grace Bassett
  • Kommentare: 1
Acer Chromebook C740 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The LCD screen replacement for the Acer Chromebook C740 requires removing the screen frame, removing several screws, and unplugging the the LCD screen.

  1. qRZiu5ekwNxOrXFx

    • Power down the Chromebook and disconnect the power adapter.

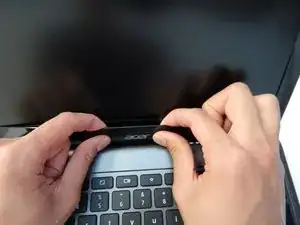

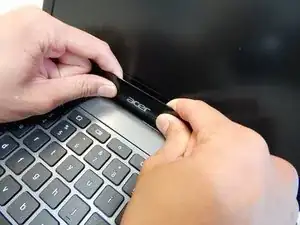

  2. 5TXmqp3ketR45wCE
    5TXmqp3ketR45wCE
    uBumGwaKLVvPdS16

    • With the Chromebook open and face up, pry the black screen frame with your fingers.

    • Move slowly around the display to evenly remove it.

    • Clicking sounds indicate the panel is seperating from the overall display.

  3. CpENWkrtDKlSNfs4

    • Once the frame is separated from the display, angle the display assembly back .

    • Lift up the portions of the frame covering the front two hinges with the spudger.

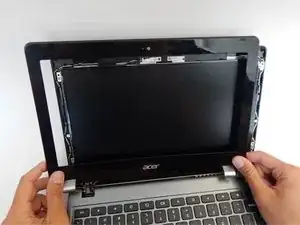

  4. rkAuIoBC1i32TBVw

    • Remove the frame from the screen assembly by pulling the frame towards you.

    • Some adjustment of the display assembly may be needed so that the frame is not stuck near the hinges.

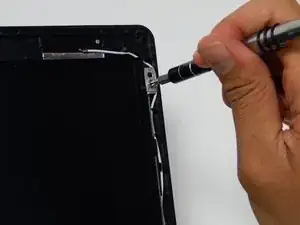

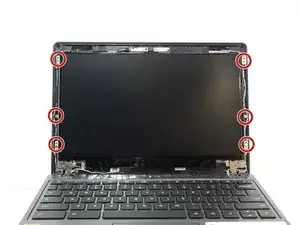

  5. Sr2LKfvFfd1SkjWe
    Sr2LKfvFfd1SkjWe
    EKUgrA4qOXHgjkf5

    • Remove the six 3.35mm screws with a Phillips #0 Screwdriver.

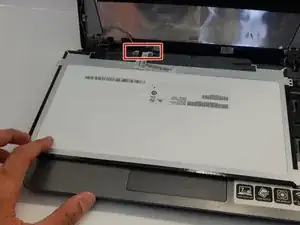

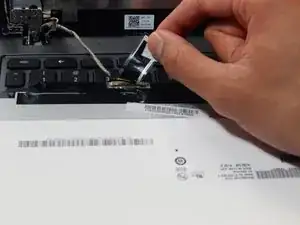

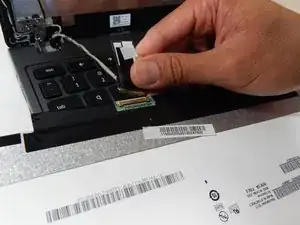

  6. YNoPDBnaW5EE4teF
    YNoPDBnaW5EE4teF
    VygX4xv411lrfBW5
    3esvujPg6SweE2Bs

    • Place the LCD screen face down on the keyboard.

    • Remove the tape holding the black connector in place.

    • Unplug the connector with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Grace Bassett

Mitglied seit: 26/04/17

217 Reputation

Ein Kommentar

You actually don’t need to unscrew the middle screws, and you don’t need to buy a new bezel.
