Acer Chromebook C740 Solid State Drive Replacement

Geschrieben von: Flor De La Rosa
  • Kommentare: 1
Acer Chromebook C740 Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The solid state drive replacement for the Acer Chromebook C740 requires removing the back panel and removing one screw. The solid sate drive stores data from the laptop.

  1. 1DURKfRbgZOYdcMN

    • Power down the Chromebook and disconnect the power adapter.

  2. UtocpFGyJPwmFE6x
    UtocpFGyJPwmFE6x
    jU3lPobIiaMW4Fny

    • Place the chromebook bottom side up on a flat surface.

    • Remove the thirteen 7 mm screws with a Phillips #0 screwdriver.

  3. l4Gbq5OJdArkdJYL
    l4Gbq5OJdArkdJYL
    QD4KyPW3qBtt1VlZ
    JZE2sE2YQXbxWjfE

    • Insert the plastic opening tool into the slit near the hinges and pry upwards to lift the back panel.

    • Applying pressure may be necessary. A click indicates the panel is ready to come off.

    This was SO helpful! Thank you!

    littlewhitecloudy -

  4. bjl2LC4qyAghYSrU
    bjl2LC4qyAghYSrU
    tUAfwGC3kUmPR536

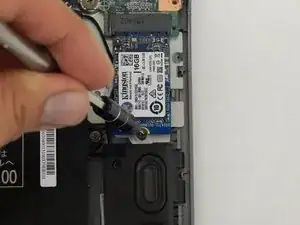

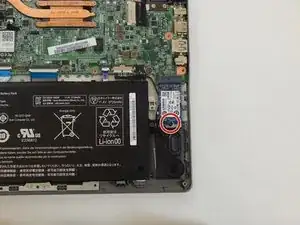

    • Remove the 3.75 mm screw with a Phillips #0 screwdriver.

  5. nLdCS4KD2AxXexfP

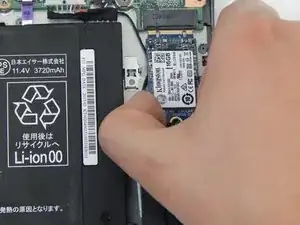

    • Unplug the solid state drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
