Acer Chromebook C740-C4PE Solid State Drive Replacement

Geschrieben von: Sang Huynh
  • Kommentare: 1
Acer Chromebook C740-C4PE Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to change the Solid State Drive in Acer Chromebook C740-C4PE.

  1. jxFHbKELYVVJhnGt
    jxFHbKELYVVJhnGt
    gH1ZEbHertlqoCLW
    OoP6NpE5AODfhW5Z

    • Make sure the laptop is turned off and laid down on a flat surface.

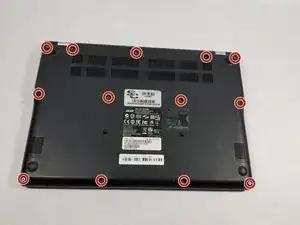

    • Unscrew the 13 screws on the back of the device using a PH0 Phillips head screwdriver.

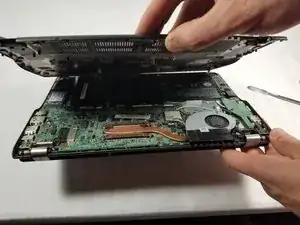

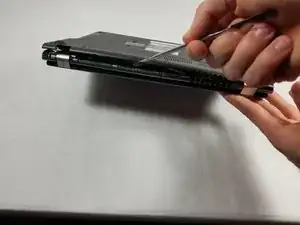

    • Use the spudger or any other prying tool to pry the back plate off of the device.

    • Be sure not to pry too hard as it may result in snapping the back plate.

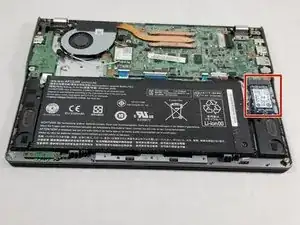

  2. x5Yf1fUWx5EYxrVc
    x5Yf1fUWx5EYxrVc
    t1qNfXmdVZZKSH1P
    ZUCx6VN5O3gPs6i3

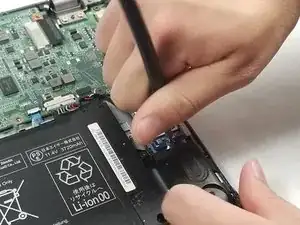

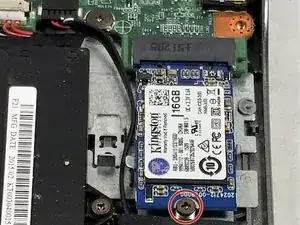

    • Remove the 3.75 mm screw with a Phillips #0 screwdriver.

  3. PpEiOjL3gM3LbxQI

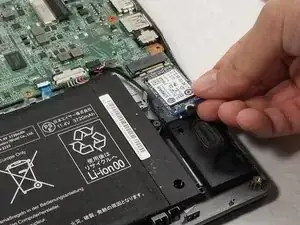

    • Pull the Solid State Drive out of the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sang Huynh

Mitglied seit: 08/03/17

252 Reputation

Ein Kommentar

There are 2 types of SSD drives, m-SATA and M.2. Which does C740 use?

Guy Scree -
