Acer Chromebook C740-C4PE Touchpad Replacement

Geschrieben von: Jacob Kahn
  • Kommentare: 0
Acer Chromebook C740-C4PE Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

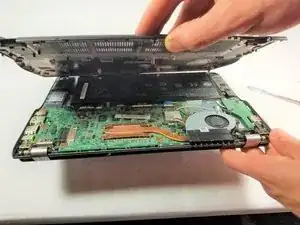

  1. UXJPevdyfPJdvJ4L
    UXJPevdyfPJdvJ4L
    QQmbAvcqAUjmWmKq
    nDZRPRUI4oo1VrmY

    • Make sure the laptop is turned off and unplugged before starting.

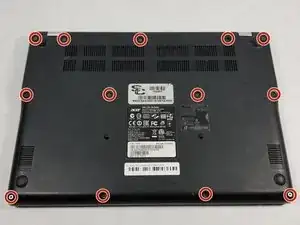

    • Unscrew the thirteen 10mm screws on the back of the computer using the Phillips #0 screwdriver.

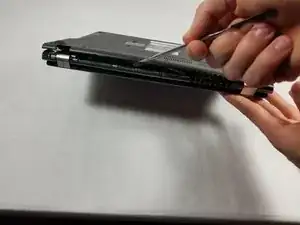

    • Using the spudger or other prying tool, gently pry the back off of the device.

    • Be sure not to pry too hard as it may result in snapping the back plate.

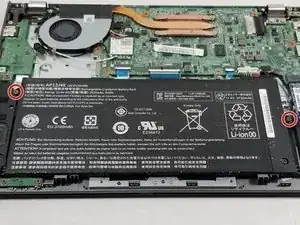

  2. oQDObpPUSvucTFUU

    • Unscrew the two 5mm battery screws using the Phillips #0 screwdriver.

  3. qIlcVxSQ4s3KbLY2

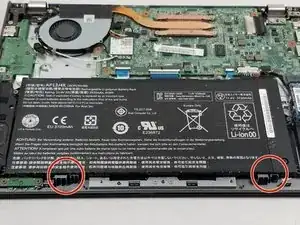

    • Gently lift the battery up and away from the hooks on the bottom of the device keeping the battery in place.

    • Be sure the battery is away from the clips before pulling away so as not to break the clips.

  4. gkeg3fIqbhBy4usv
    gkeg3fIqbhBy4usv
    3siHn4GgBwJSC2DL
    WqAtwjdCCHV6LUkC

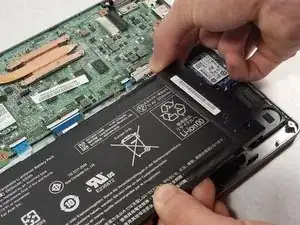

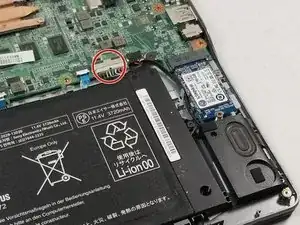

    • Detach the connecting cable from the motherboard by pulling away.

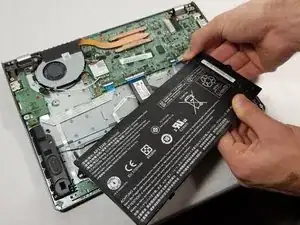

    • Remove the battery from the device.

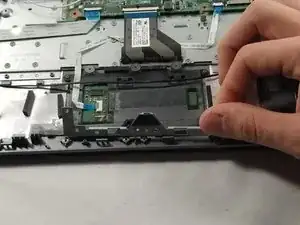

  5. DnsubJAdxXMPUIEN
    DnsubJAdxXMPUIEN
    ScaXZPkcyB6rQqGI

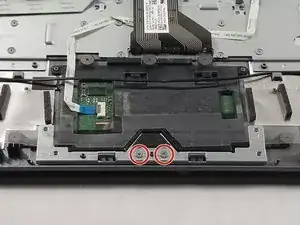

    • Unscrew the two screws on the silver restraint with the Phillips #0 screwdriver.

    • Lift the silver restraint from the device.

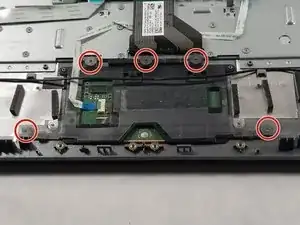

  6. ZUXGcyePQnXybiOg

    • Unscrew the five screws on the touchpad.

    • You will need to move aside the plastic covering that is above each screw.

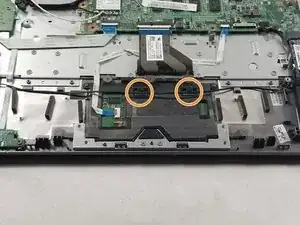

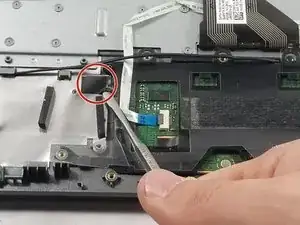

  7. KAtCJso4Wt3L4E5T
    KAtCJso4Wt3L4E5T
    bJUWbtEFeTxbpInn

    • Using a spudger, lift the black electrical tape to the left of the touchpad.

    • Remove the black wire running across the touchpad from the two hooks on top of the part.

    • Be careful not to damage the black wire when removing from the two hooks.

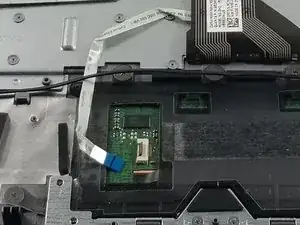

  8. aoSaUlcSBElTENGo
    aoSaUlcSBElTENGo
    WmaDgDILpNspRkNl

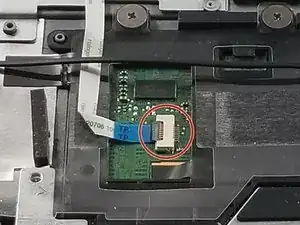

    • Lift the flap on the wire connecting the motherboard and remove the connector.

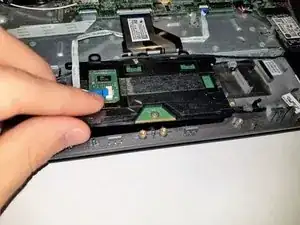

  9. HRKPdHCvxuA6SNii

    • Remove the touchpad from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
