Acer Chromebook CB3-111-C670 Screen Replacement

Geschrieben von: Allen Lewis
  • Kommentare: 1
Acer Chromebook CB3-111-C670 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the screen of your Acer Chromebook CB3-111-C670. The screen replacement is a simple fix, and shouldn't take long at all.

  1. XMdkQWCiH1kdkZJH
    XMdkQWCiH1kdkZJH
    Fm6PR3tLRtdepAJl

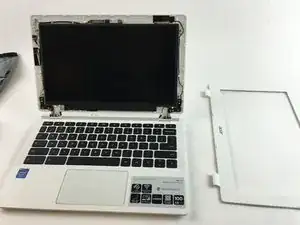

    • Unplug and power off the laptop before starting this repair.

    • Pry the white frame away from the screen with an opening tool.

    • As you move the spudger along the seam between the frame and the screen, the clips holding the frame in place will loosen.

  2. PDUJZ2Ts3UpNDdyK
    PDUJZ2Ts3UpNDdyK
    W6nQy1eEkwraj1Pj

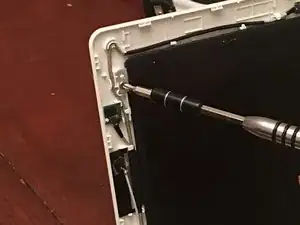

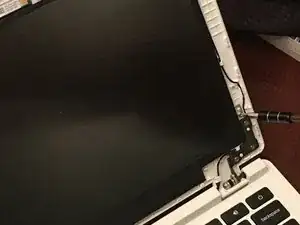

    • Remove the four screws within the silver brackets that are holding the screen to the back of the laptop.

  3. CihaWjOFRxFC2MSh

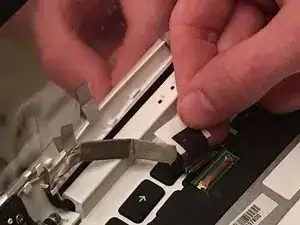

    • Once you've removed the screws, lift the piece of tape that is covering the display connector.

    • Use a spudger to flip up the black tab on top of the connector to unlock the ZIF connector.

  4. yctny3E1fJWdrFGW

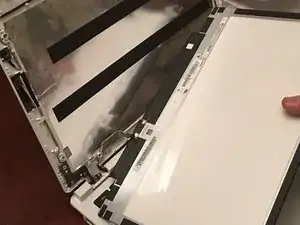

    • Pull the ribbon cable out with tweezers and remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
