Acer Chromebook CB3-131-C3KD Keyboard Key Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 - 4 Minuten

Einleitung

Use this guide to replace a key from the keyboard of your device.

  1. IG5vnVRdfXKPYaUK
    IG5vnVRdfXKPYaUK
    ShjFxDOjf3GPbFQm

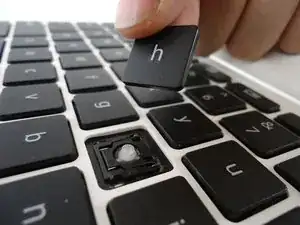

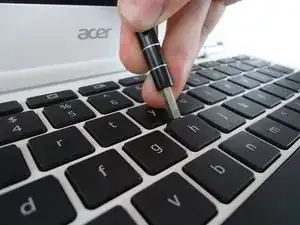

    • Make sure you turn off the laptop before starting.

    • Place the flat head screw driver under the key, but over the key clip retainer.

  2. xgMhHfFBfw2HAZnC

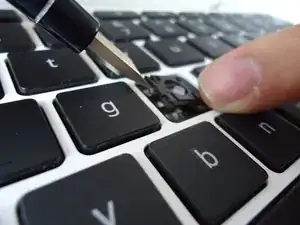

    • Push down on one of the bottom corners of the key, so that the opposite diagonal corner rises and gives leeway.

    • Carefully place the flat head screw driver under the raised corner.

    • Carefully pry up from underneath the raised corner to raise the metal clips away from the key base.

  3. nh6qLGiDu1NydxLl
    nh6qLGiDu1NydxLl
    I35ULJD2yyRrNrSj

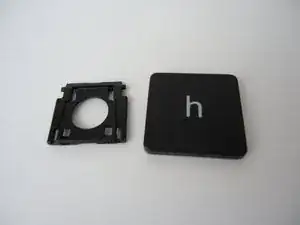

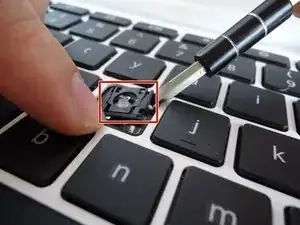

    • Pry up from the top left and right corners of the retainer subsequently.

    • Remove clip retainer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
