Acer Chromebook CB3-431-C5EX Trackpad Replacement

Geschrieben von: Gavin Riley Branyon
  • Kommentare: 1
Acer Chromebook CB3-431-C5EX Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 40 Minuten

Einleitung

If your Acer Chromebook CB3-431-C5EX has cursor problems such as jittering, jumping around, or failing to recognize gestures properly, then it might be time to replace the trackpad. Out-of-date/missing drivers can sometimes cause trackpad issues, so you might want to check and see if this is the case before continuing. If you need to replace your trackpad, be sure to take extra care when disconnecting any cables or wires as they can be fragile.

Prior to beginning this repair, power off your device and unplug from the power adapter.

  1. GMBtwmLkFBFURZtk

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Turn device over so the bottom panel is facing you.

  2. PN3egt2PE1knitR5

    • Remove the eight 4mm Phillips #0 screws.

    • Remove the two 6mm Phillips #0 screws.

    There are two tabs on the battery opposite the connector side that need to be inserted into the retention slots or the battery won’t sit flat. Need to do this before reinserting the battery screws.

    Also, I found that #00 Phillips works best on the 4mm screws.

    John Burleson -

  3. xpK5hFjVxVobQgUZ
    xpK5hFjVxVobQgUZ
    KvtmAfscIIcQeXSV

    • Insert a plastic opening tool into the crack between the bottom panel and the side of the computer.

    • Gently pry the panel off the computer by continuously pulling up and on the panel and moving the plastic opening tool around the crack until the panel comes off.

    • There are several clips holding the cover in place.

    • Remove the bottom panel and set it aside.

  4. R4iBZAJfGZCxyPlc

    • Remove the two 4mm Phillips #0 screws on either side of the battery pack that are securing it in place.

  5. HyPiaYidMqCPdboX
    HyPiaYidMqCPdboX
    Gv45liXitlUUcACe

    • Disconnect the taped white 8-pin cable on the bottom right of the battery pack.

    • Use thumbnail to pull on the small protruding tabs on either side of the connector.

  6. UcGpbOshMtosSUR3

    • Carefully lift the entire battery pack out of the laptop.

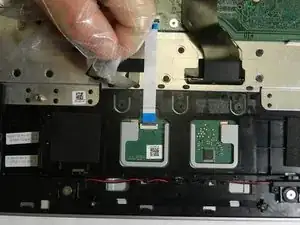

  7. 6n2Agum2TQSVY2Gd
    6n2Agum2TQSVY2Gd
    4BMMOFrxhxSOUOOa

    • Remove the black tape covering the screws connecting the trackpad to the laptop.

  8. CyhwoCDOppUqn6LI

    • Remove the three 2.5 mm screws that are securing the trackpad to the laptop using a Phillips #0 screwdriver.

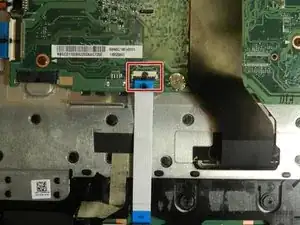

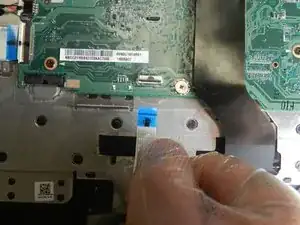

  9. o2AHLSr5rgXt6SKI
    o2AHLSr5rgXt6SKI
    GpoyBCuKB6BHgj3V

    • Lift up the black retaining flap on the connector.

    • Slide the blue ribbon cable out of the connector.

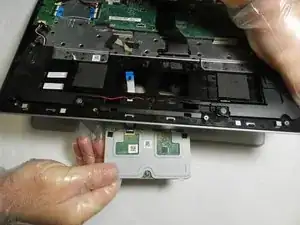

  10. MZwIYjMAkfHxXGBH

    • Lift up the body of the laptop and slide the trackpad out from beneath.

Abschluss

To reassemble your device, follow these instructions in reverse order.
