Acer Chromebook CB5-132T-C8ZW USB Port Replacement

Geschrieben von: Lauren Reichenbach
  • Kommentare: 0
Acer Chromebook CB5-132T-C8ZW USB Port Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 Minuten

Einleitung

Before beginning, make sure the Acer Chromebook CB5-132T-C8ZW is disconnected from any external power source; then press and hold the power button for at least five seconds prior to dismantling in order to release any stored energy that could potentially be harmful.

  1. KfKyLENQVkokqmqw

    • Remove eleven 7.2 mm screws from the bottom of the Chromebook using a JIS #1 screwdriver.

  2. 2e3RQso2osRuTSBg
    2e3RQso2osRuTSBg
    TbyBSidSO6YJrmYP

    • Insert and slightly twist a plastic opening tool to separate and remove the backing of the Chromebook from the body.

    • Do not immediately remove the back from the laptop. The power strip keeps the backing attached to the rest of the laptop. Gently lift backing from the power button side and set next to the body of the laptop.

  3. FxBsocUYDRdtu4Sc
    FxBsocUYDRdtu4Sc
    TYwSUvQlYOpbi3JG

    • Remove two 4.6 mm JIS # screws at each end of the battery.

  4. qMSNeKCLvEgEclXP
    qMSNeKCLvEgEclXP
    FPSxeDgdbZVSa2Ie
    EvhYaAaJQcZCJRxH

    • Carefully pull out the ribbon cable attached to the motherboard that runs wires to the battery.

    • Remove the battery.

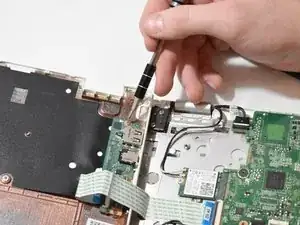

  5. w31Jg2EXEEoPhfac
    w31Jg2EXEEoPhfac
    ZiBXQPXkve2JbMuB

    • From the back panel, remove one 3.4 mm JIS #1 screw.

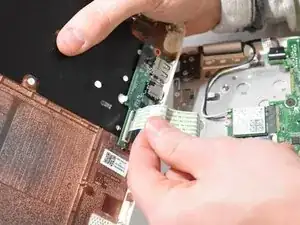

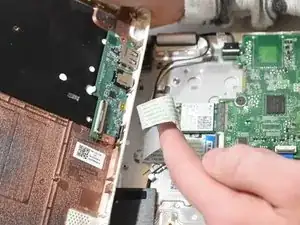

  6. VhZ6xXw2gbYaTs6W
    VhZ6xXw2gbYaTs6W
    d1gqwMuJgZe6JRCb

    • Remove the white connector strip using your fingers.

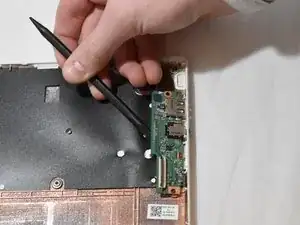

  7. LdFDPCRhOUbevpLU
    LdFDPCRhOUbevpLU
    6GGeZMvC5KY5oYqO

    • Lift the USB port up using a spudger.

    • Remove the USB port with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
