Acer Chromebook CB5-312T-K 8Z9 Secondary Circuit Board Replacement

Geschrieben von: Cole O'Neal
  • Kommentare: 2
Acer Chromebook CB5-312T-K 8Z9 Secondary Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

  1. QLgo3KS6qZDl2yK5
    QLgo3KS6qZDl2yK5
    N3OdjLvpYTl2D4DF

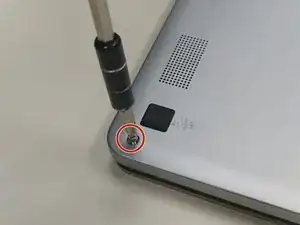

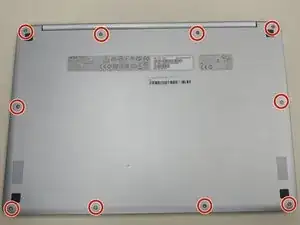

    • First begin by flipping the laptop on its back and having the back cover face you directly.

    • Then unscrew the ten Phillips head screws that hold down the back cover using a Phillips #0 Screw Driver.

  2. wJAFyVEMpcPAPGAj

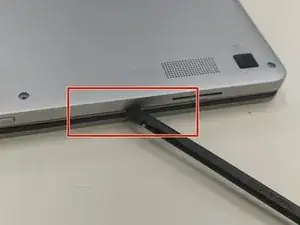

    • Using a plastic spudger, open the back cover and remove it from the laptop.

  3. pWQ5cajkyv1PUSFX
    pWQ5cajkyv1PUSFX
    qR4nP21IHPH4lWGf
    iIQAAIcpJwV3AVyc

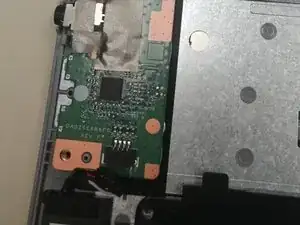

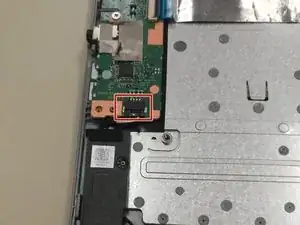

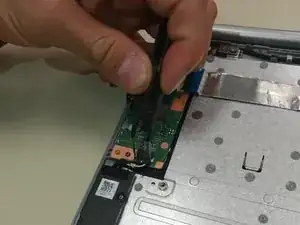

    • Identify the port that is connected to the speaker.

    • Using tweezers, separate the cable from the port.

  4. NZL4c5BEBATnolsY
    NZL4c5BEBATnolsY
    o2NoToc4RSuF6vWZ

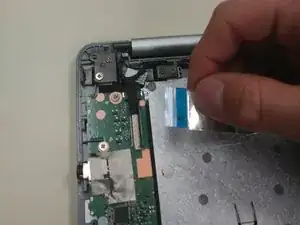

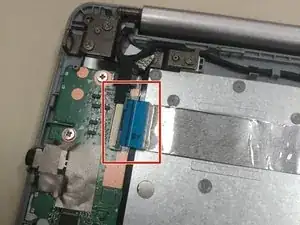

    • Find and remove the blue tape from the circuit board.

  5. vNYF5RBJ536UDsK1
    vNYF5RBJ536UDsK1
    urFcAGMIMrRx3atY
    mSaP5LqTxPpNfoVl

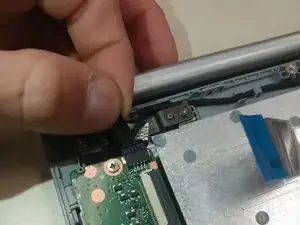

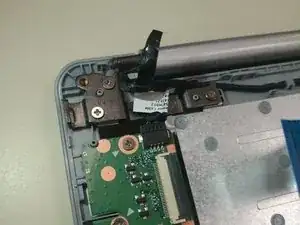

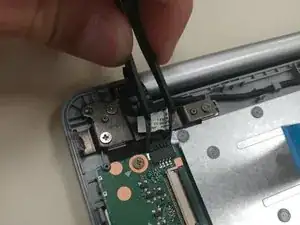

    • Remove the black tape from the port.

    • Using tweezers, separate the cable from the port.

  6. LRrTmx1QOCPqGlHe
    LRrTmx1QOCPqGlHe
    MWMEUJMMoNIQ3WJV
    EH2dkKEpXjqyPhaC

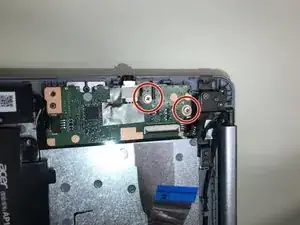

    • Identify the two Phillips screws.

    • Remove the two screws holding down the board with a J1 Phillips screwdriver.

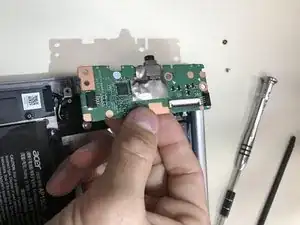

    • Gently lift the board from the Chromebook.

Abschluss

To reassemble your device, follow these instructions in reverse order.
