Acer Chromebook CB5-571-C5XU Speaker Replacement

Geschrieben von: ️Gaetan Charles
  • Kommentare: 0
Acer Chromebook CB5-571-C5XU Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

8 - 10 Minuten

Einleitung

  1. eTF6AHwtjftF5S6U
    eTF6AHwtjftF5S6U
    UsE16YOcHR2slX1X

    • Remove the following eighteen screws using a Phillips #0 screwdriver.

    • Remember to have a small bowl or container nearby to place the screws in, so none of the screws get lost.

    • Make sure the Chromebook is unplugged and shut down, so no files are lost and there is no risk of electrocution.

  2. gmLDBeiTUqGHBrRv
    gmLDBeiTUqGHBrRv
    bZOx1OomueOPqFiU

    • Using the flat side of the spudger, pry open the bottom case of the laptop.

    • Working from the front to the back, where it connects to the screen, proved to be the easiest way of popping the case off.

  3. 2oa1mACNVUt6443U

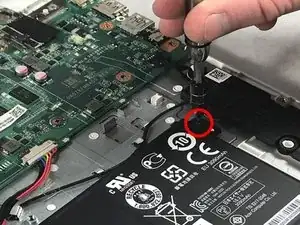

    • Using a Phillips #0 screwdriver, unscrew the screw on right side of the battery placement.

    • Be careful not to lose the screw and have a small container nearby to place it in.

  4. SOk1KgGlHvCvrNOQ

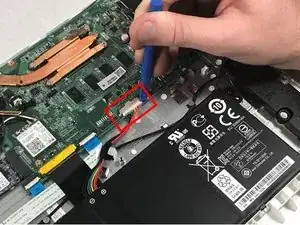

    • Using a plastic opening tool, disconnect the wires connecting the battery to the motherboard.

  5. deypR4re1ypd62Xt

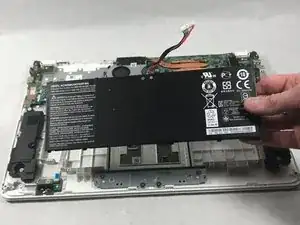

    • Gently lift the battery out and remove it from the laptop casing.

  6. oDnNpftgXoOELXng
    oDnNpftgXoOELXng
    cdeUOVNcQLAoxCOb

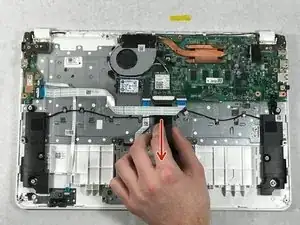

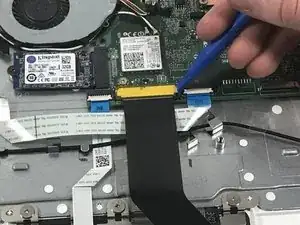

    • Use the plastic pry tool to unlatch the two tabs on either side of the black ribbon.

    • Gently slide the black ribbon out from its socket and under the white ribbon.

  7. nEaMMTxFZRtayCJm

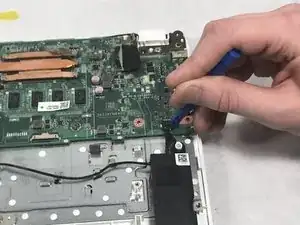

    • Carefully remove the smaller black ribbon from the motherboard using the opening tool.

    • Be careful when prying the connector loose, its small size can make it difficult to grasp a corner of the connector.

  8. QIa5XMB3AOGeTOIy

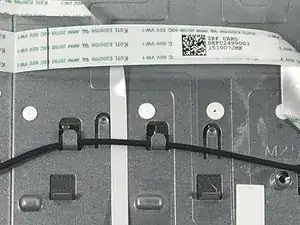

    • Weave the black wire connecting the two speakers out of the small metal hooks.

    • It might be helpful to take a picture of how the wire is wrapped around the hooks, as this layout is important when the wire is put back.

  9. 65OPDKjOMjlbNLcg

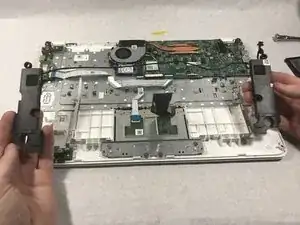

    • Simply lift upwards on both speakers, and they will remove from their position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
