Einleitung
This guide will go through how to replace the touch screen display of the Acer Chromebook Spin 15 CP315-1H-P1K8. Make sure to be careful when replacing the screen, the glass could shatter under pressure.
Werkzeuge
-
-
Flip the computer over so that the back is facing up.
-

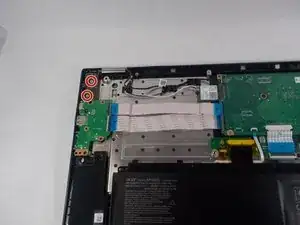

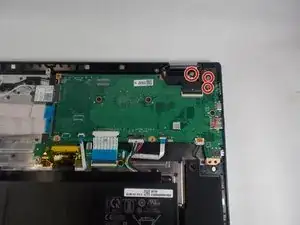

Remove the twelve 6mm Phillips #1 screws from the bottom of the laptop.
-
-
-

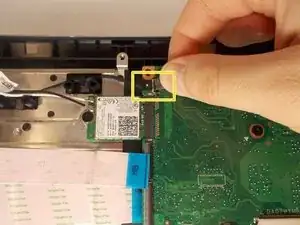

Unplug the camera/microphone ribbon cable from the circuit board.
-

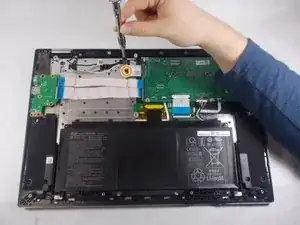

Remove the single 3mm Phillips #1 screw from the Intel core.
-

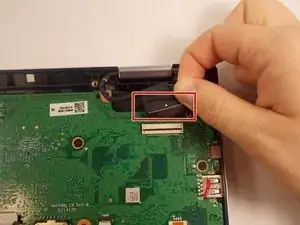

Unplug the cable from the circuit board.
-
-
-

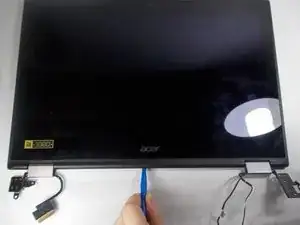

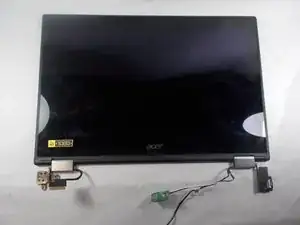

Use the plastic opening tool, create a gap between the back and front of the display.
-

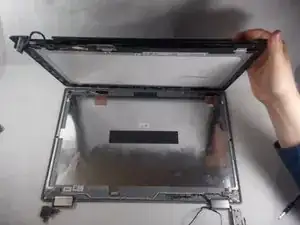

Lift the front out with your hands.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
I just want to say that I’ve used this guide several times. My kid dropped the laptop and broke the hinge which is located inside the top cover behind the LCD panel. When this happened, it caused the grommets to come out of the plastic. But for about $45 we replaced the hinge and the top cover and I was able to fix it and put it all back together. I appreciate having this guide to remind me. Thank you!
Thank you so much for these instructions! The connections were the hardest part for me and the pictures were a great help.
Some of the screws are long and some are short - make sure you not which came out of which hold.
Thomas Krauska -
As always, I would recommend that you remember exactly where you remove the screws from, on this particular model, we did not see that the screws were different lengths. I would recommend sorting them in a pattern that is familiar, such as clockwise or counterclockwise. This way when replacing the screws you know exactly the order to put them back in.
Evan Costa -
