Replace the screen of an Acer Iconia A1-810.

Werkzeuge

  1. lSgndDtFRZ1Xvecq
    • Remove the back cover by lifting with a plastic opening tool, below the camera button slot.

    I found my thumbnail worked better, and starting near one of the corners. The picture shows the tool inserted where it could easily damage the SD card mechanism.

    James Dellar -

  2. 2M4cOO5ArpOiDCLW

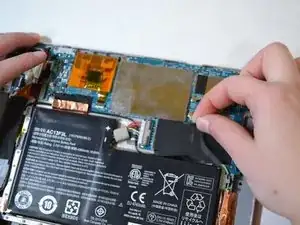

    • Remove the black tape connecting the battery to the motherboard.

  3. posgBSjK2GJnVFDx

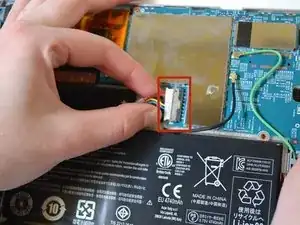

    • Pinch the sides of the white resistor to safely remove it without damaging it or yourself.

    This is a white connector, and it is easy to get fingernails to both ends to pull it out of the metal socket.

    James Dellar -

  4. Nu3hXdANl6bSLMxI
    Nu3hXdANl6bSLMxI
    BQx1Yn1oHI55TOHM

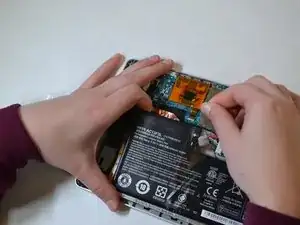

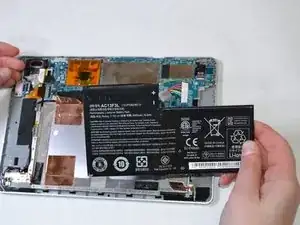

    • Remove battery from adhesive.

    There is a clear plastic tab to pull (being used in the photo), which lifts the battery in one, and unsticks it from the 2 or 3 sticky pads.

    James Dellar -

    Berapaan Harga Batrenya Gan

    Oppo Popular -

  5. jmUoqQq6QuMl6SeZ
    • Use a Phillips #000 screwdriver to remove the screws around the perimeter of the motherboard.

    A No 0 cross point screwdriver worked perfectly well for these. There was a small black Acer sticker covering the one at the top right. All circled screws are the same length. In my case there was a small retaining plate between the two screws either side of the HDMI port (top left). The two screws in the rectangle at the left were significantly longer.

    James Dellar -

  6. vYLI2nYZgdJpYBFq
    vYLI2nYZgdJpYBFq
    GyDnmVMUlAih4mEV

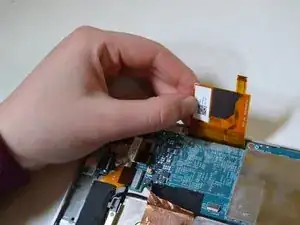

    • Disconnect the resistor attached to the orange tab by sliding the tail out.

    • Pry open the orange tab near the top left corner.

    Disconnecting this was fiddly. It was even more fiddly to replace. The dark grey part of the connector on the board stays in place, and you need to slide the tail inside it. The orange tab was taped down at one edge.

    James Dellar -

  7. 3o3O1avkLQ2Us2xF
    3o3O1avkLQ2Us2xF
    oUMAJDYHOshI3CFO
    eaQFUlNb2QOAdU5e

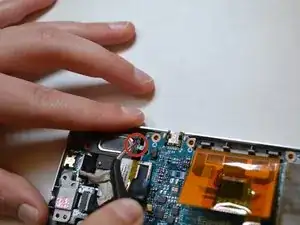

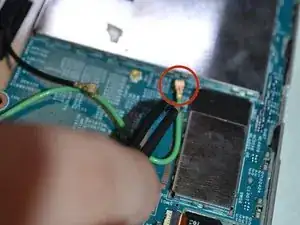

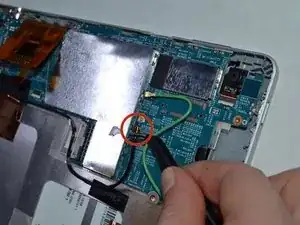

    • Disconnect all cords, wires, and resistors from the motherboard using tweezers.

  8. 6q4KlR2hiWbYsiJI
    6q4KlR2hiWbYsiJI
    RyuuFsRsYoeadY1v
    Q2ItPESE5LYMFivC

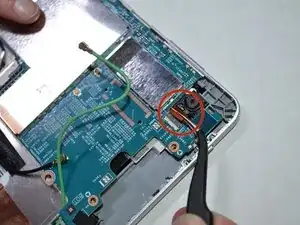

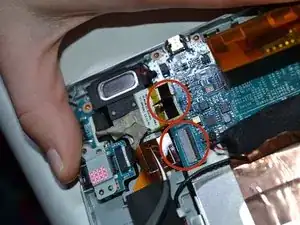

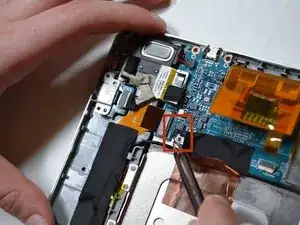

    • Continue to disconnect all resistors attached from the motherboard, using tweezers.

  9. TglvpinfuEDJFjep

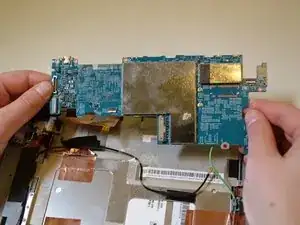

    • Gently lift motherboard out.

    • The edges may be sharp.

  10. OuPGPquDuOhtdGdw
    OuPGPquDuOhtdGdw
    kFcyDqKRI6tcADqu
    1eutqBojAHifEVu6

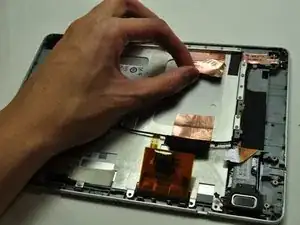

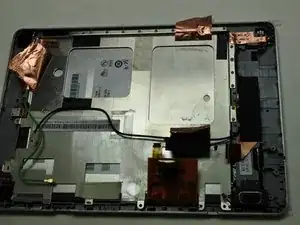

    • Lift the three copper foils from the plate.

  11. JRDvWyAGqefubYJ3

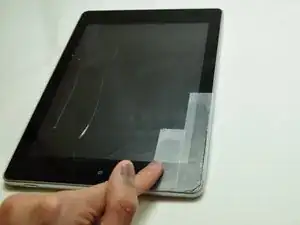

    • Add strips of tape to the sides of the device.

  12. n5VjqAGWulIfbCFK
    n5VjqAGWulIfbCFK
    yeS3Yf3GOw5MKCo3

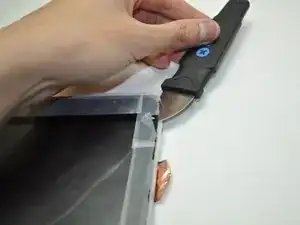

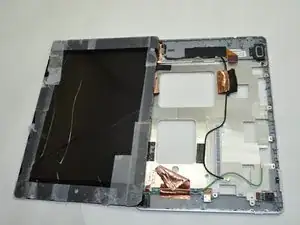

    • Wedge the Jimmy between the screen and body of the device and ease around the whole edge of the device.

    • A reasonable amount of force is necessary to wedge deep into the screen.

    • The screen will possibly crack more and the debris will be scattered.

  13. cR2BYuTcNGvgHX5A
    cR2BYuTcNGvgHX5A
    ED3fEVAprbxPePsB
    a6d1NgdutApFnA1b

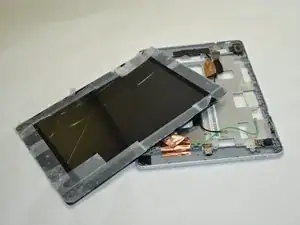

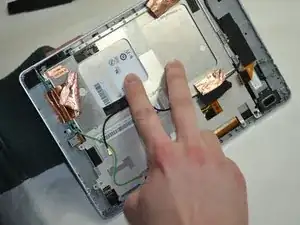

    • While holding the side of the screen, press the metal plates behind the device to pop the screen out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

John

Mitglied seit: 29/01/15

588 Reputation

Ein Kommentar

Before starting to remove the screen, remove the strip of black tape stuck over the screen ribbon cable (right hand end in the last picture) carefully lift the connector lock on the old screen connector and remove the ribbon cable completely.

Fit this ribbon cable to the new display before fitting the screen and the feed it through the slot provided as you install.

Michael -
