Einleitung
Replacing the internal speakers in your tablet is fairly easy to do. Make sure you keep the screws you remove, you will need them to install the replacement speaker assembly.
-
-
Prepare your working space. The ideal work space has a flat, level surface that is clean and well lit.
-
Shut down your Acer Iconia A1-830.
-
Remove any cables or exterior covers from your tablet.
-

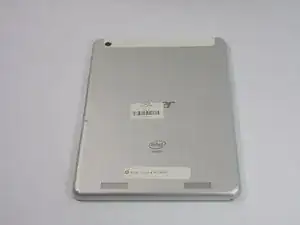

Place it on your work space, with the screen facing up.
-
-
-
Wedge the plastic opening tool into the tiny gap between the white plastic front bezel and the aluminum rear panel.
-
Do not try to pry apart the top edge on the front side near the front-facing camera.
-
-
-

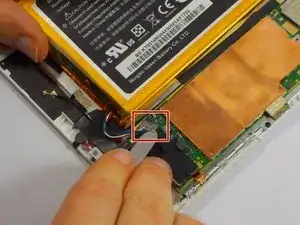

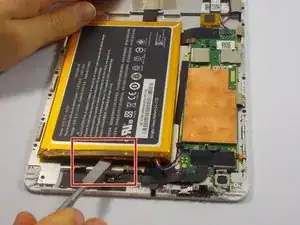

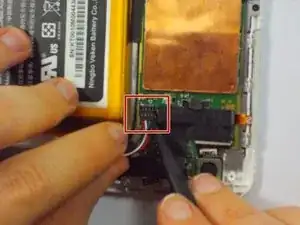

Remove the small clear plastic cover on top of the battery cable with the nylon or metal spudger.
-
-
-

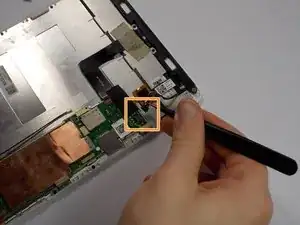

Remove the small clear plastic cover from the speaker connector with the metal tweezers.
-

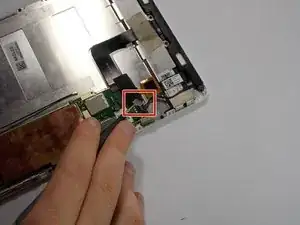

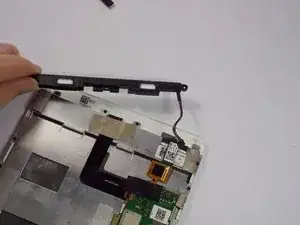

Lift out the speaker connector using the metal tweezers.
-
-
-

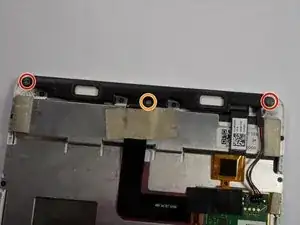

Remove the two 2.8 mm Philips #00 screws using the #000 sized Philips screwdriver.
-
Remove the 3.7 mm Philips #000 screw using the #000 size Philips screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
